In this post, we will try to guide you in as much detail as possible to be able to build an NTRIP CASTER RTK server with ESP32.

Yes, you didn’t get it wrong!

You will have your own fully functional CORS NTRIP CASTER server that can be used for any RTK application without RTK2GO any more (ESPrtk version 3.9.95 ):

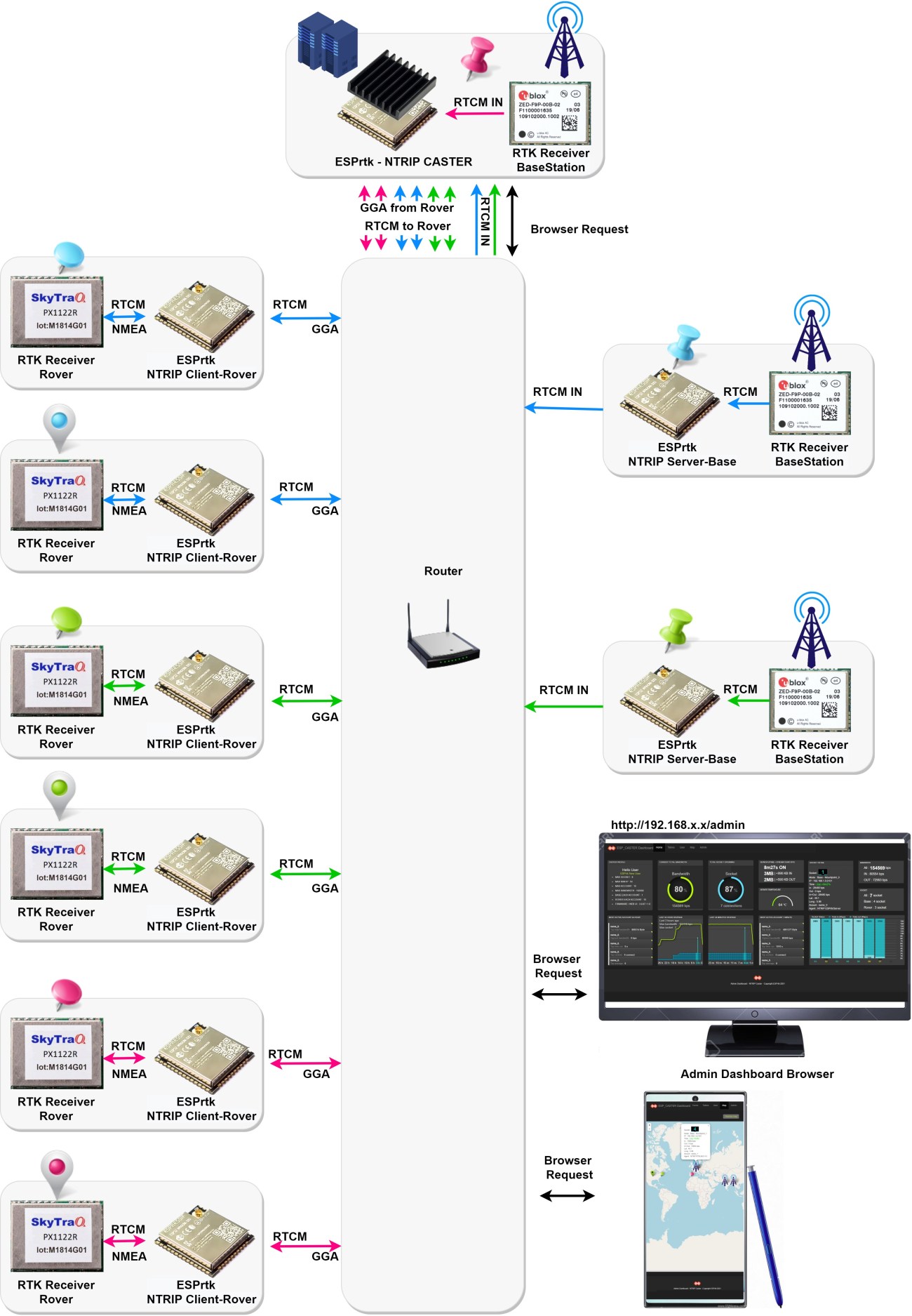

  • Realtime CORS NTRIP CASTER server.
  • Support NTRIP Client (Rover PUSH-DOWN).
  • Support NTRIP Server (Basestation PUSH-UP).
  • Support analysis of NMEA GGA/RMC from Rover and display on map.
  • MAX SOCKET : 9 + 1 (including Admin dashboard).
  • MAX BAN IP : 50
  • MAX ACCOUNT : 100
  • MAX BANDWIDTH : 3600000 bps
  • BASE EACH ACCOUNT : 1
  • ROVER EACH ACCOUNT : 10
  • NMEA/RTCM injection : GGA , RTCM 1005,1006,1007,1008,1032,1033,1004,1012 (for TOPCON, Trimble and Hemisphere, John Deree)
  • Admin management page (Account, kick or ban connection, map, graph, restart …)
  • Runs in local network ( address 192.168.x.x:port )

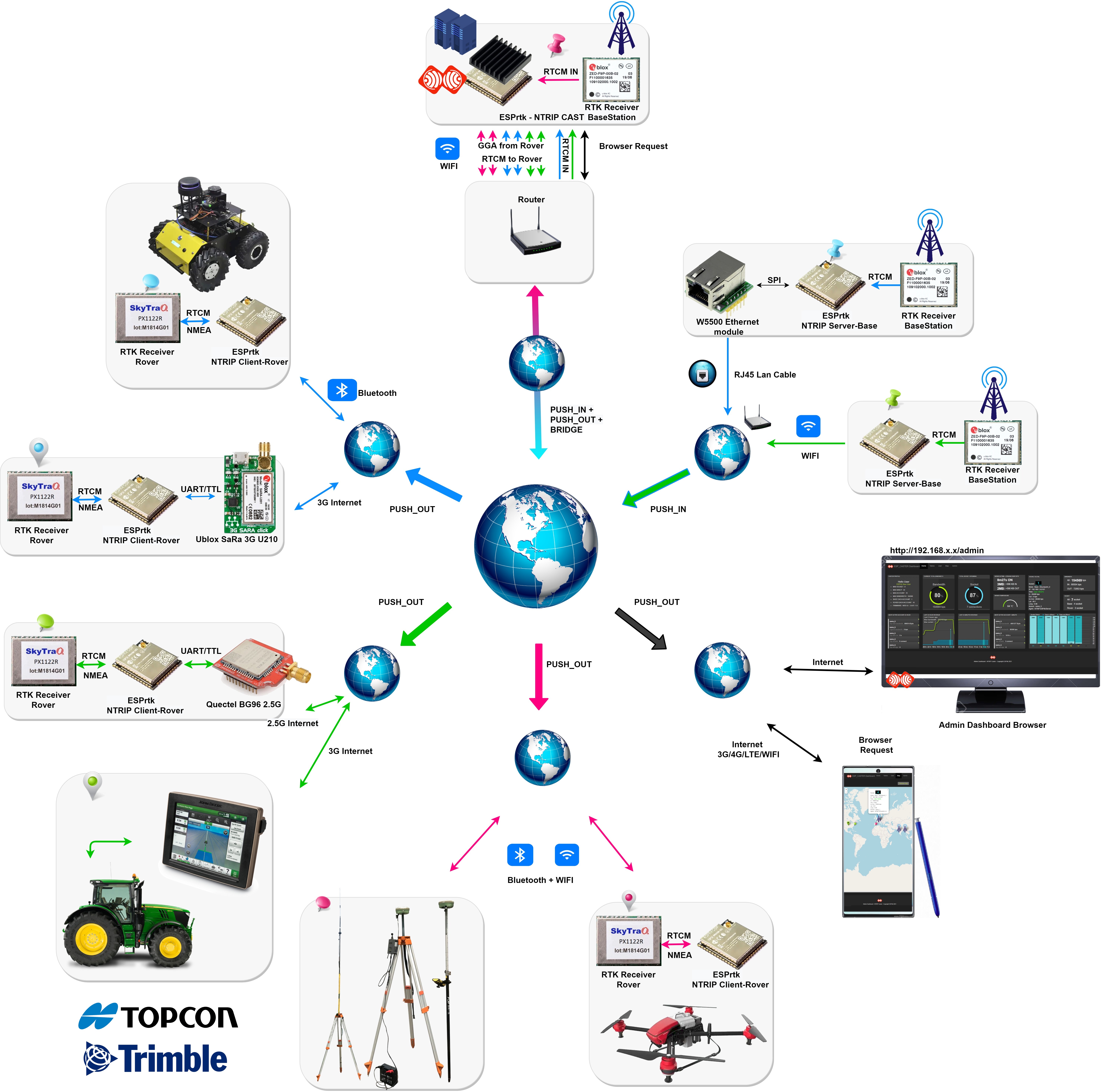

  • Run in the global network and connect anywhere in the world with the free DDNS service!
  • Access and Server type select (img)

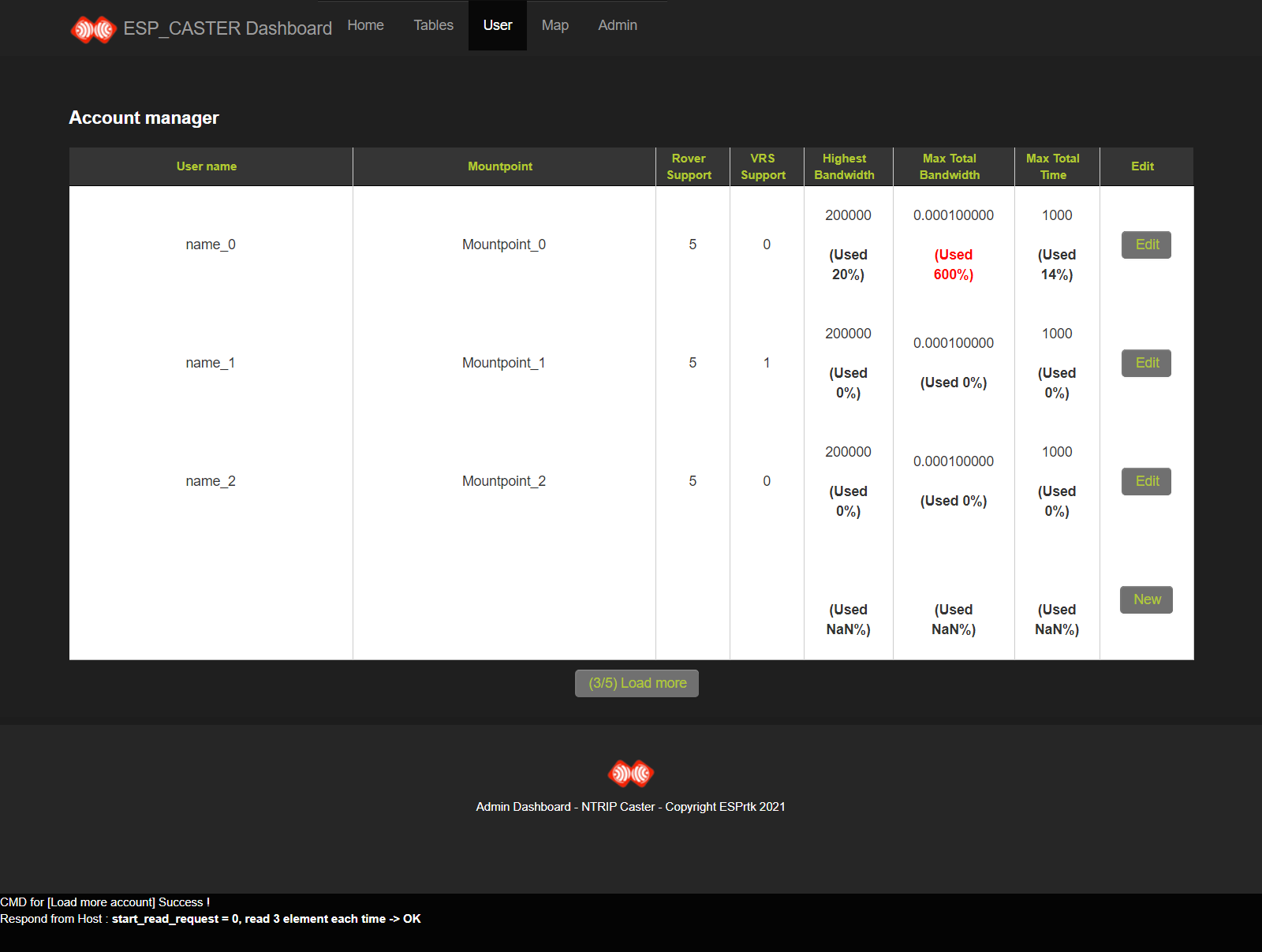

  • Account manager for each Base/Rover (img)
  • Custom STR editor for each Base/Rover (img)

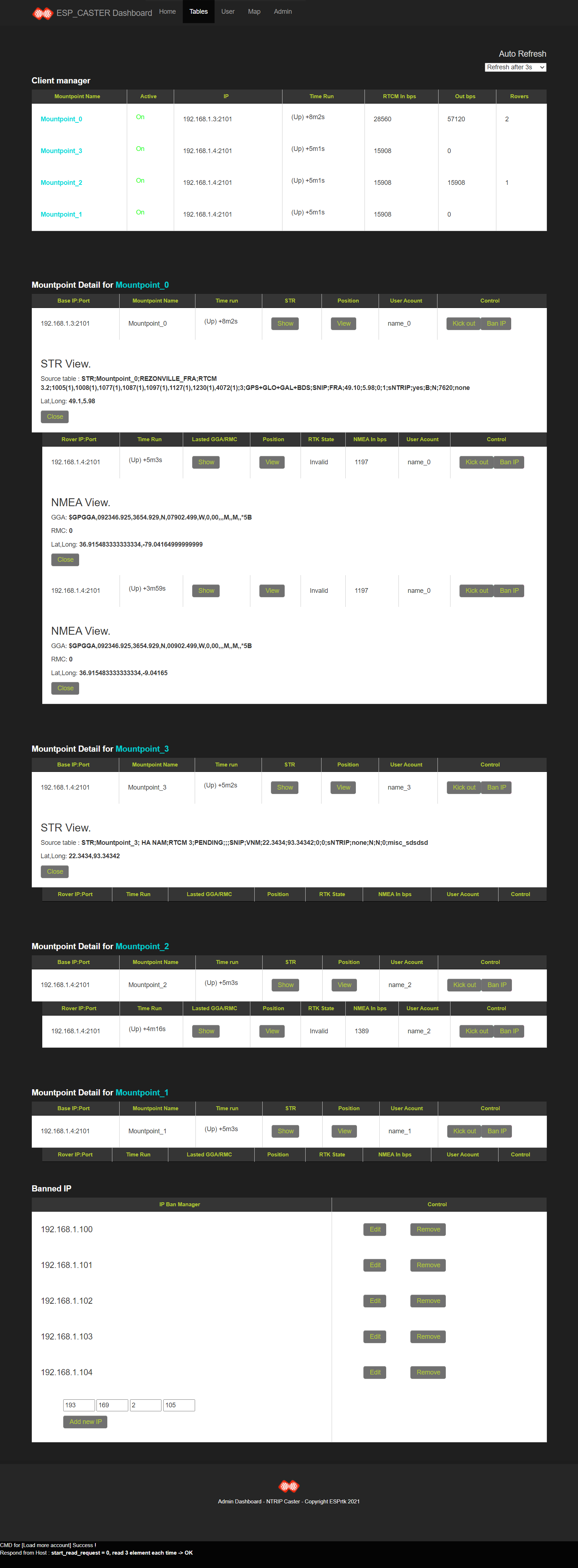

  • Socket manager , force kick out, ban IP user , IP/Port/Acount/Speed ….. for each Base/Rover (img)
  • Set limit bandwidth , limit time , limit rover numbers , VRS , password login ,…. for each Base/Rover (img)
  • STR/NMEA/GGA/RMC collector , real time tracking and position viewer by map view , auto marker , tooltip – popup ,… for each Base/Rover (img)

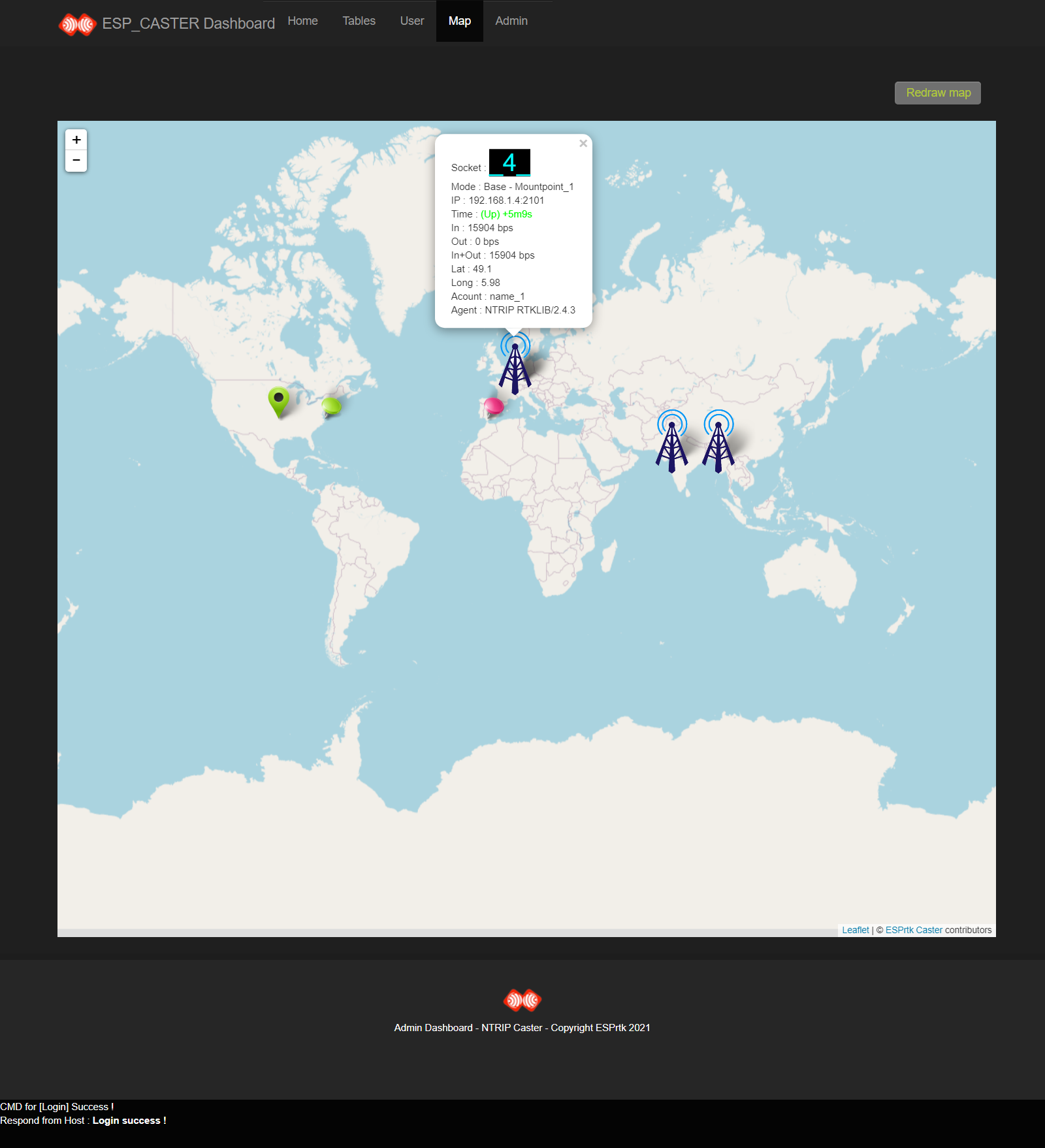

  • View all position of Base and Rover on a single page (img)

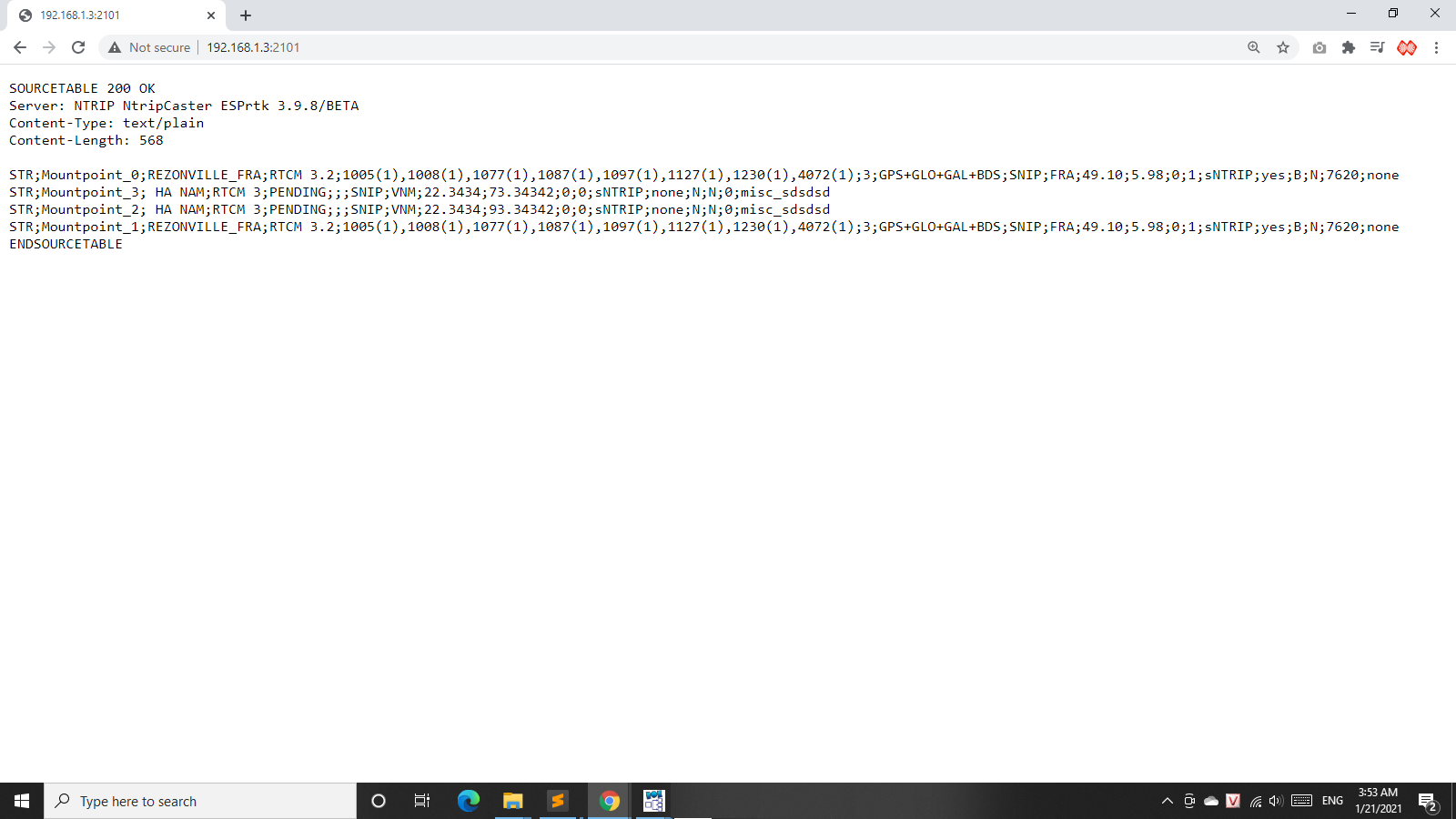

  • Mountpoint Sourcetable view on browser (img)
  • Dash board viewer : CASTER PROFILE , CURRENT TOTAL BANDWIDTH , TOTAL SOCKET OPENNING, SERVER UPTIME + STREAM COUNT BYTE, MOST ACTIVE ACCOUNT 24 HOUR , LAST 24 HOUR REVENUE , LAST 24 MINUTES REVENUE ,MOST ACTIVE ACCOUNT 1 MINUTE , Socket StatusData in (Kbps)Data out (Kbps), SOCKET DETAIL (Socket , Mode,IP +Time +In bps+Out bps+In&Out bps+Lat +Long+ Acount Name +HTTP User Agent ) ,BANDWIDTH (ALL+IN+OUT) , SOCKET COUNT (All+BASE+ROVER) (img)

Learn all the powerful features here:

We also created a video tutorial here: https://youtu.be/jYI4_MdHs5E




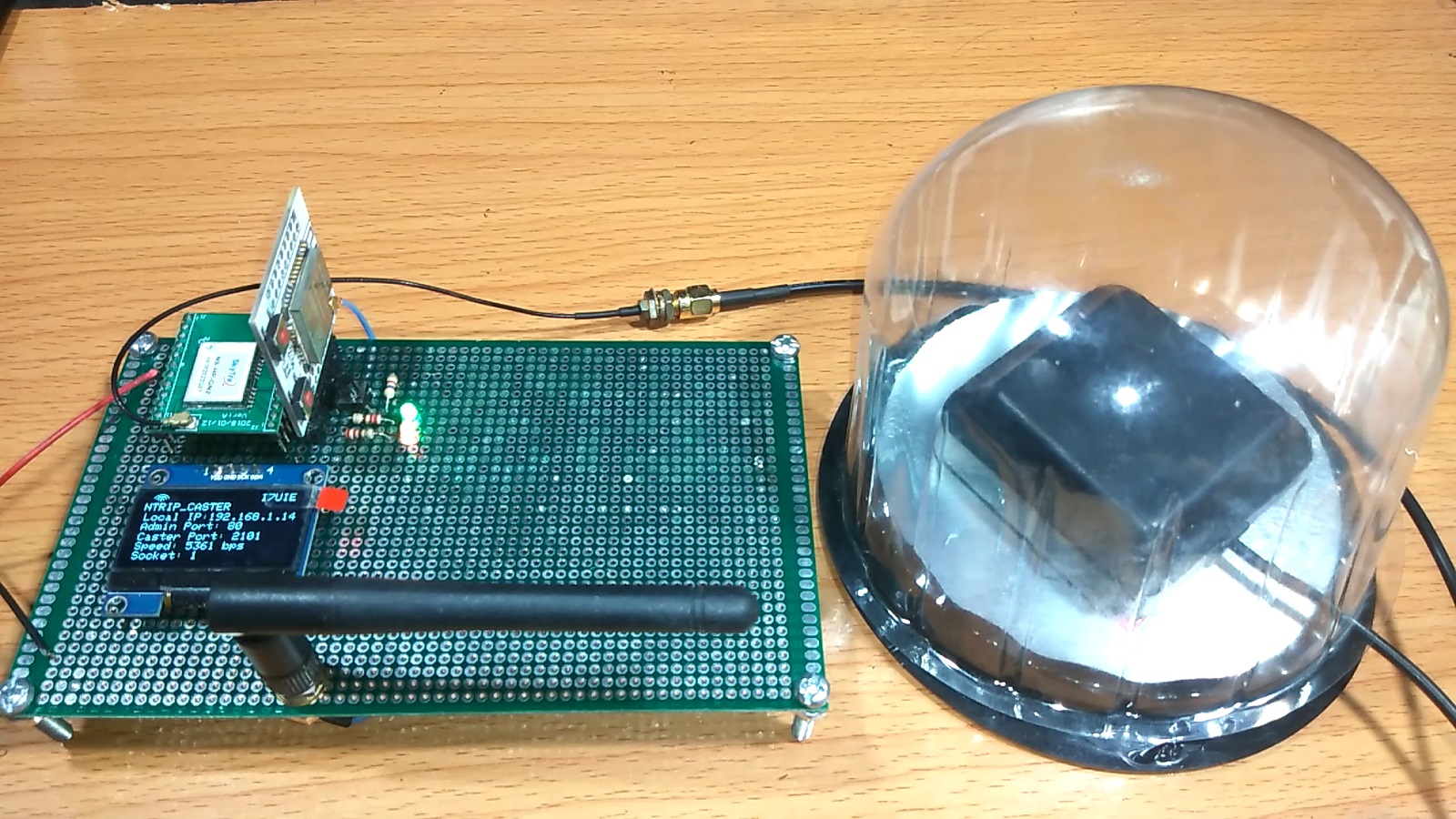

Hardware preparation

ESPrtk NTRIP CASTER is supported since version 3.9.89 .

But we recommend using the latest version of ESPrtk. ( currently 3.9.95 ).

Learn about ESPrtk 3.x.x version here: 3.x.x Firmware Support


Hardware.

  • App Build : NTRIP/MQTT RTK BaseStation+Rover+CASTER
  • ESP32 : ESP32 DEV KIT C Espressif ( ESP32_WROOM_32U or ESP32_WROOM_32UE CHIP)
  • RTK GNSS: F9P or PX1122R
  • Display: OLED SSD1306 0.96 inch or SH1106 1.3 inch( option !)
  • Power supply: 5V 2.5A Adapter
  • Other: LED , Button, Switch , 2.4Ghz WiFi Antenna , GNSS RTK Antenna, RJ45 Etheret cable, Micro USB Cable , 3.3V Active Buzzer , …

Register and download the firmware for the ESP32

The process of downloading firmware for ESP32 consists of 2 steps.

  • Upload the register file Register.bin (If it is a new ESP32 chip).
  • Upload the App.bin file.

Please read this article carefully: http://esprtk.wap.sh/tt/t3/register_update_firmware.html

Configure ESP32 and GNSS module RTK

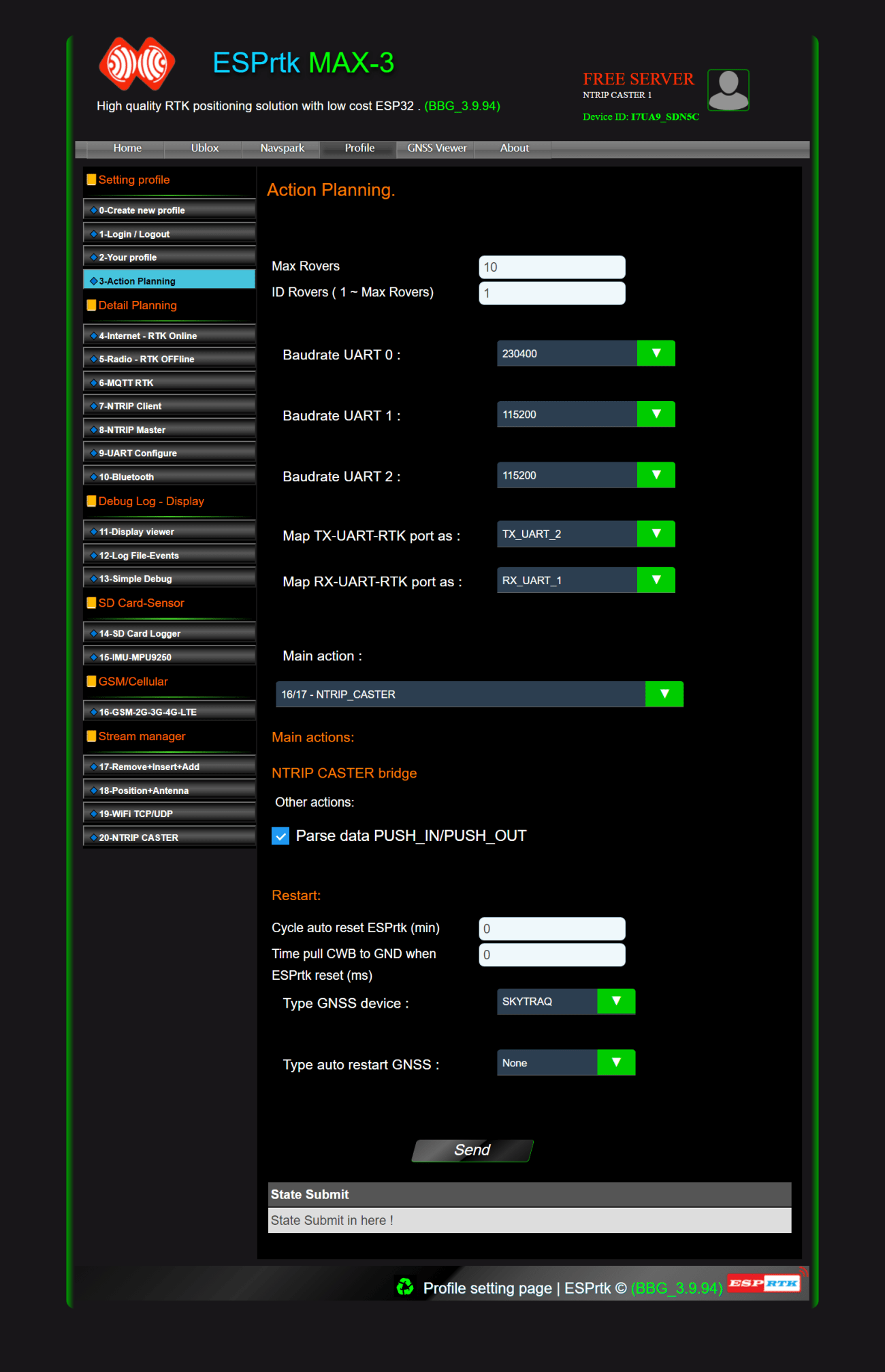

ESPrtk Configure – Action Planning

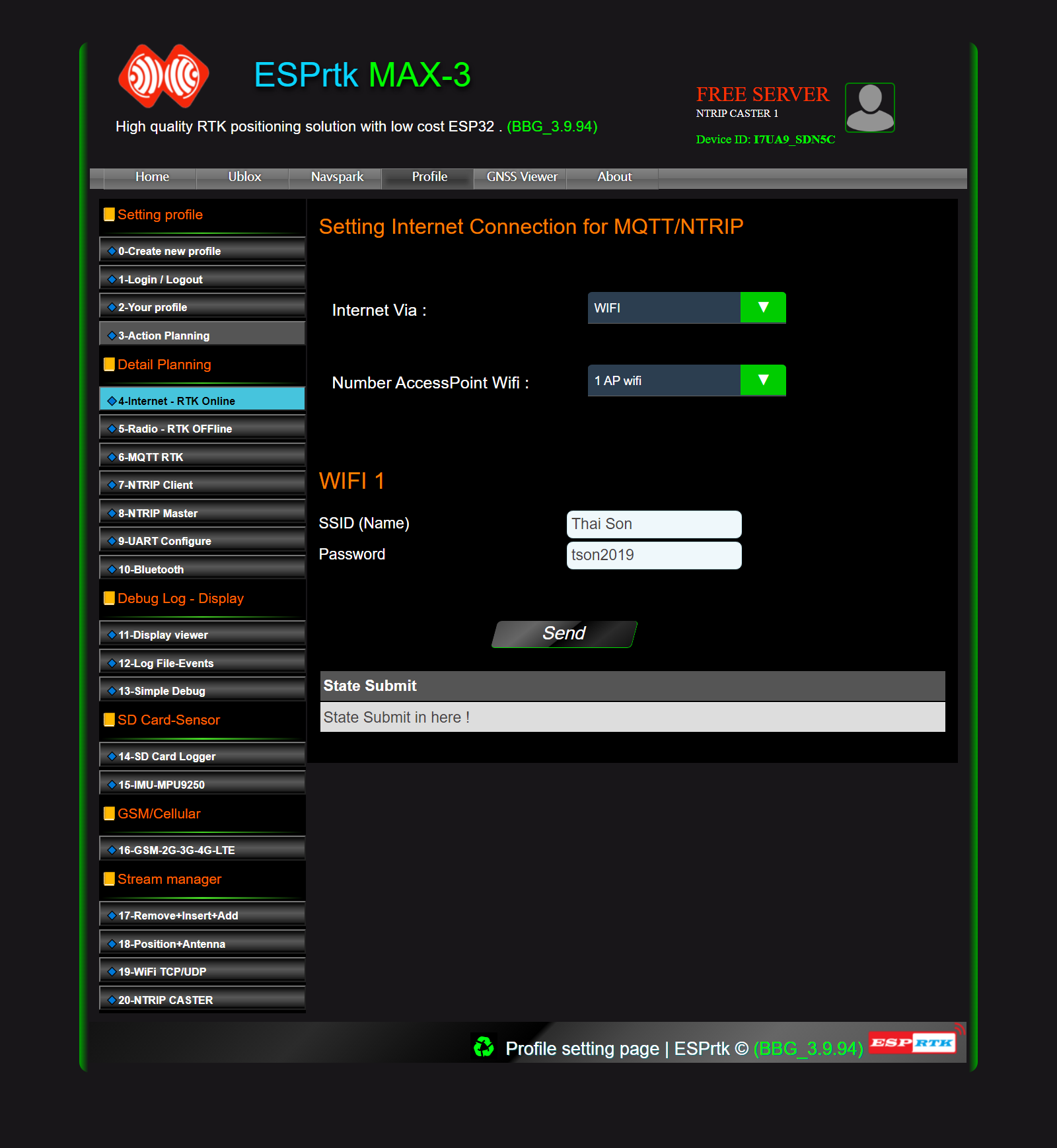

ESPrtk Configure – Internet WIFI

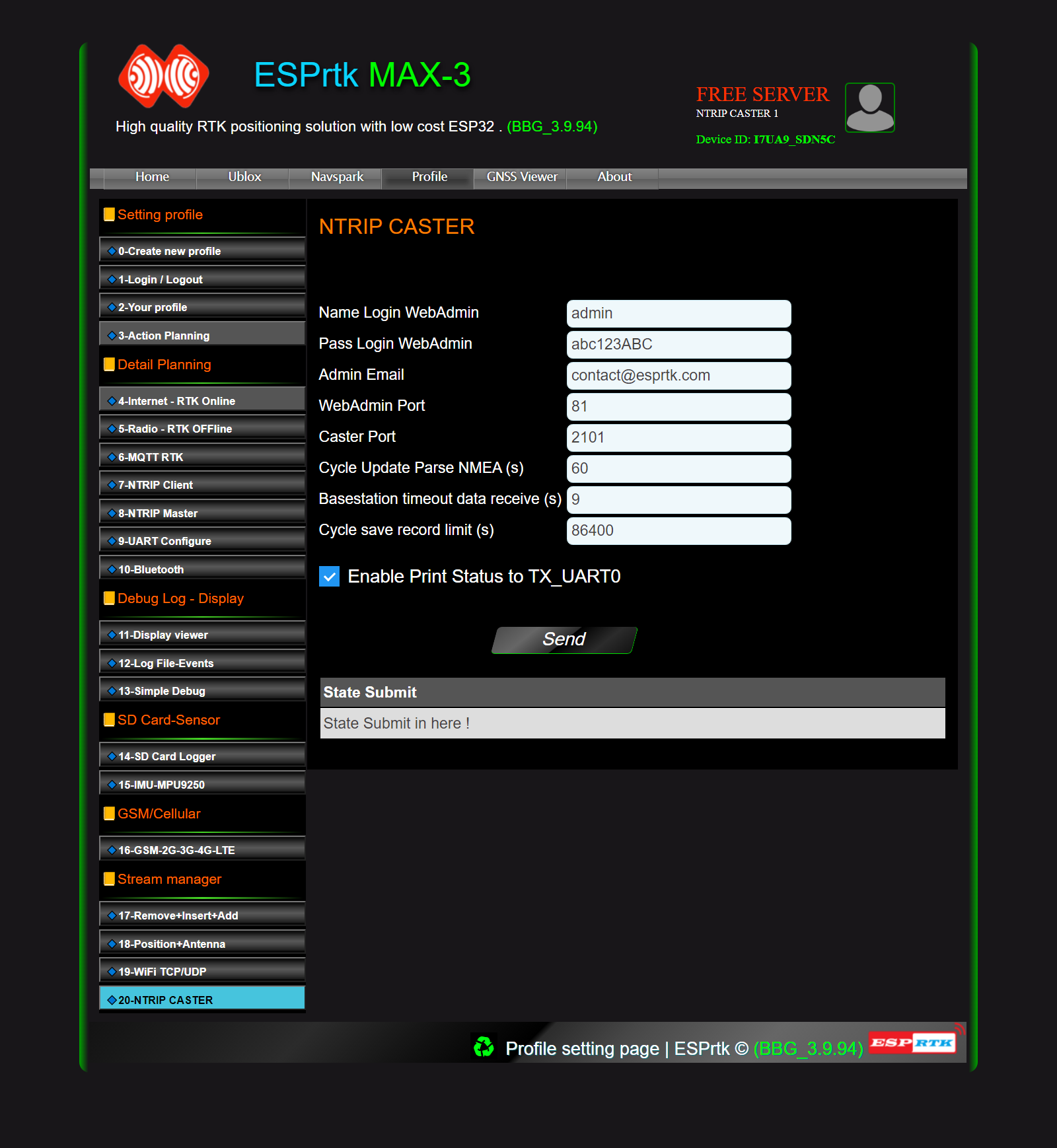

ESPrtk Configure – CASTER port

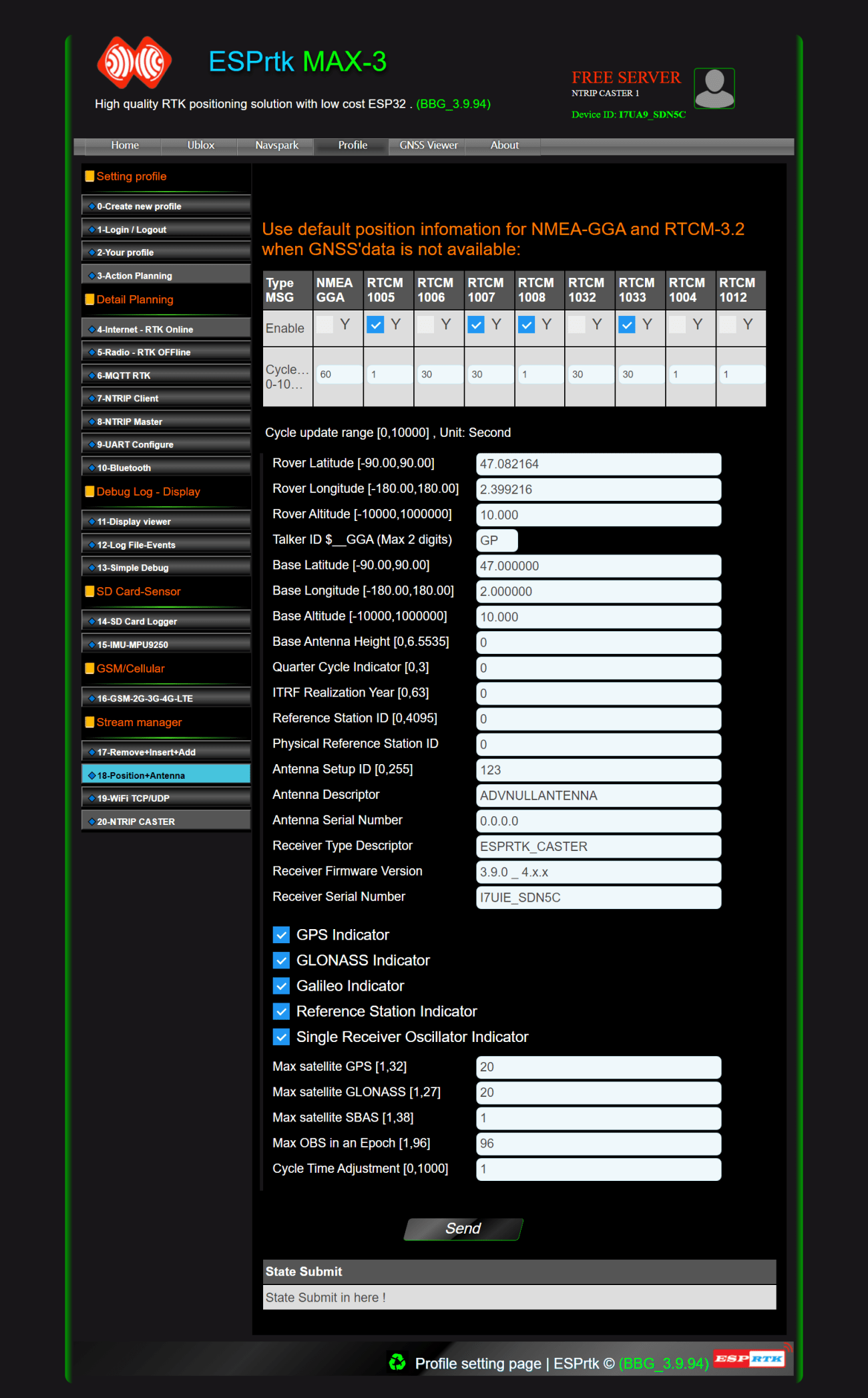

ESPrtk Configure – Auto inject RTCM 1008,1007,1033,1004,1012…


GNSS Configure – PX1122R Base mode

Read detail here : Configure NS-HP GL/BD/GN Navspark as BASE Station

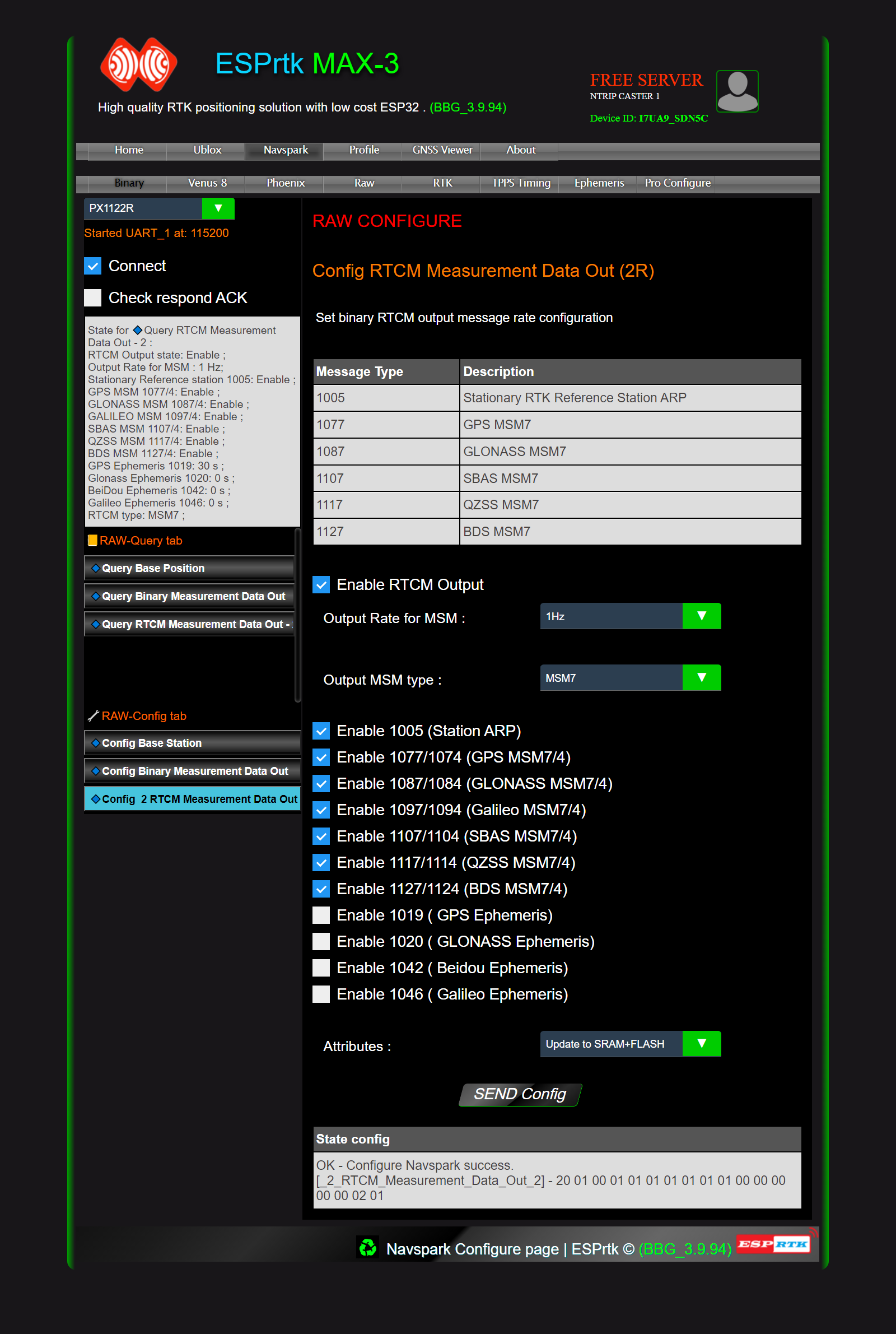

GNSS Configure – PX1122R RTCM out

Read detail here : Configure NS-HP GL/BD/GN Navspark as BASE Station

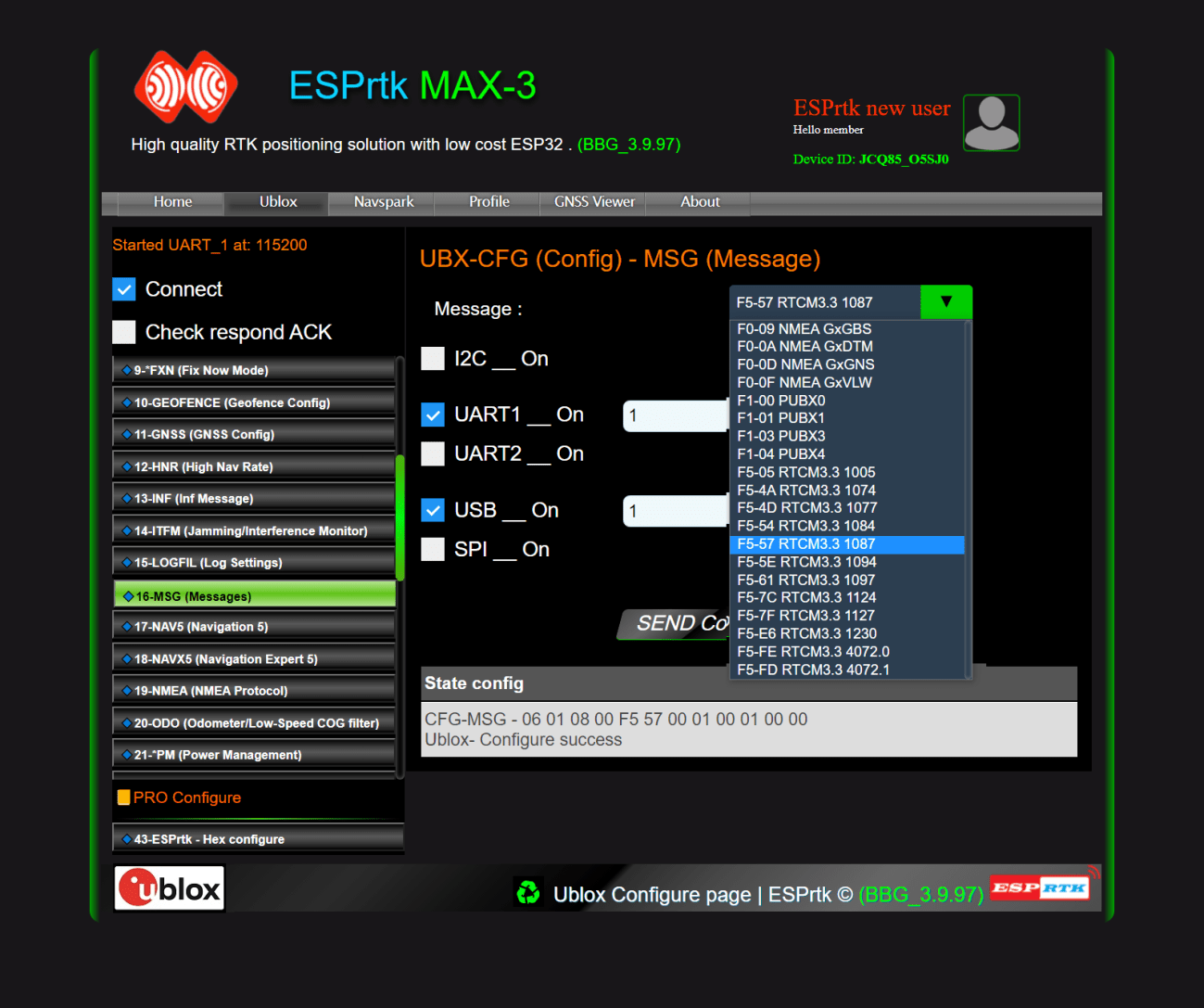

GNSS Configure – F9P RTCM 3 output

Read detail here : Configure F9P/M8P Ublox as BASE Station

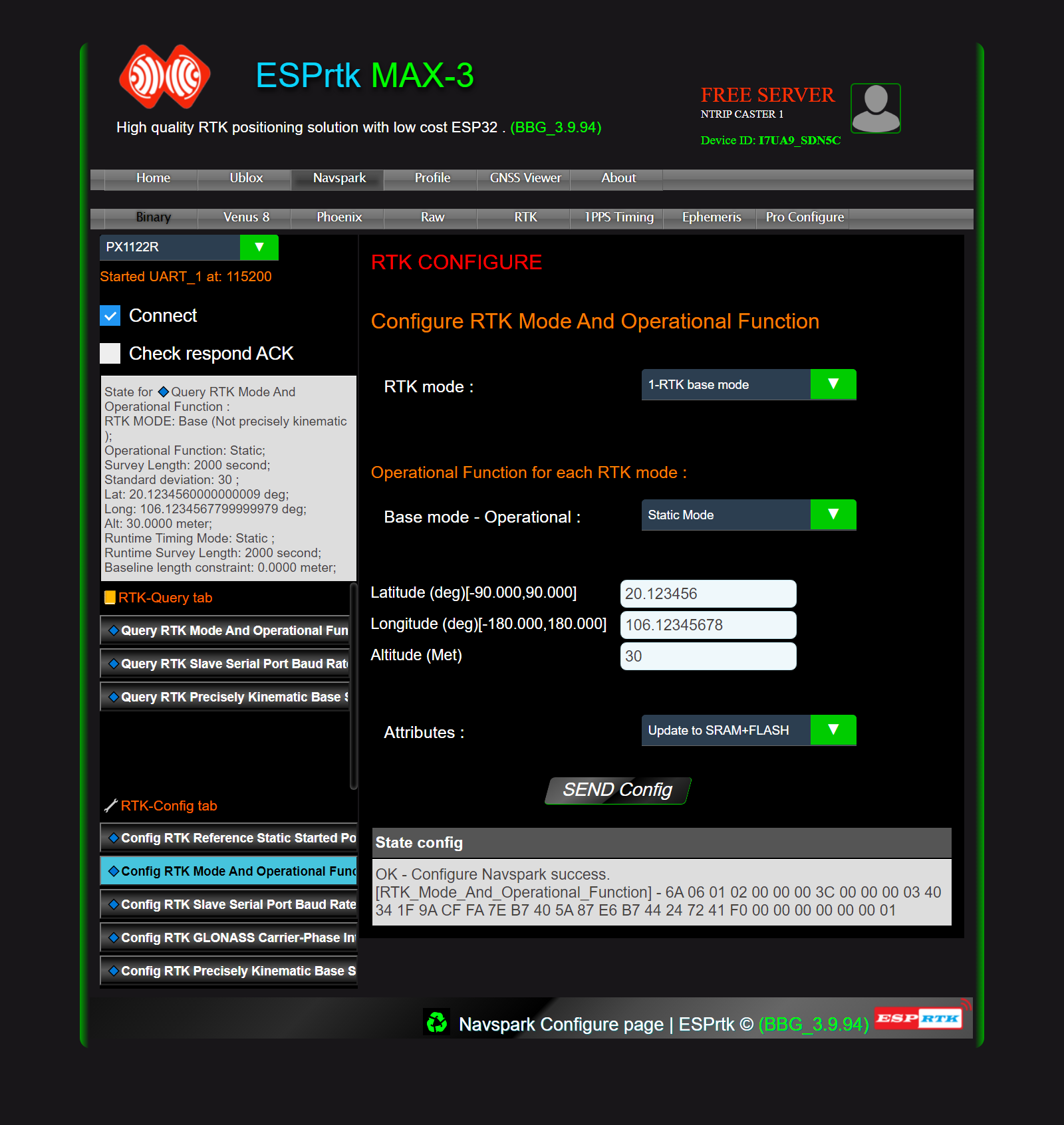

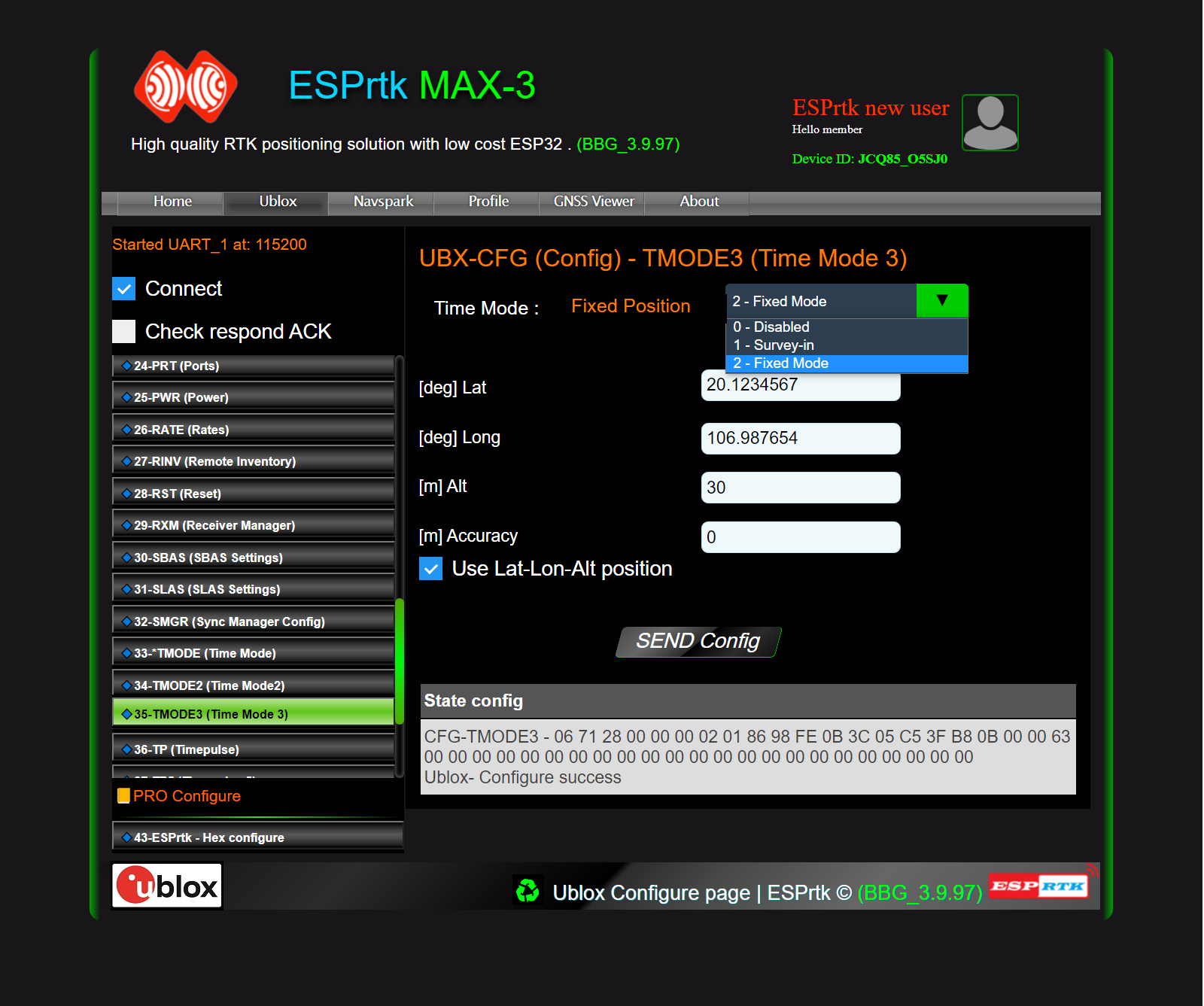

GNSS Configure – F9P Base FIX/Survey mode

Read detail here : Configure F9P/M8P Ublox as BASE Station

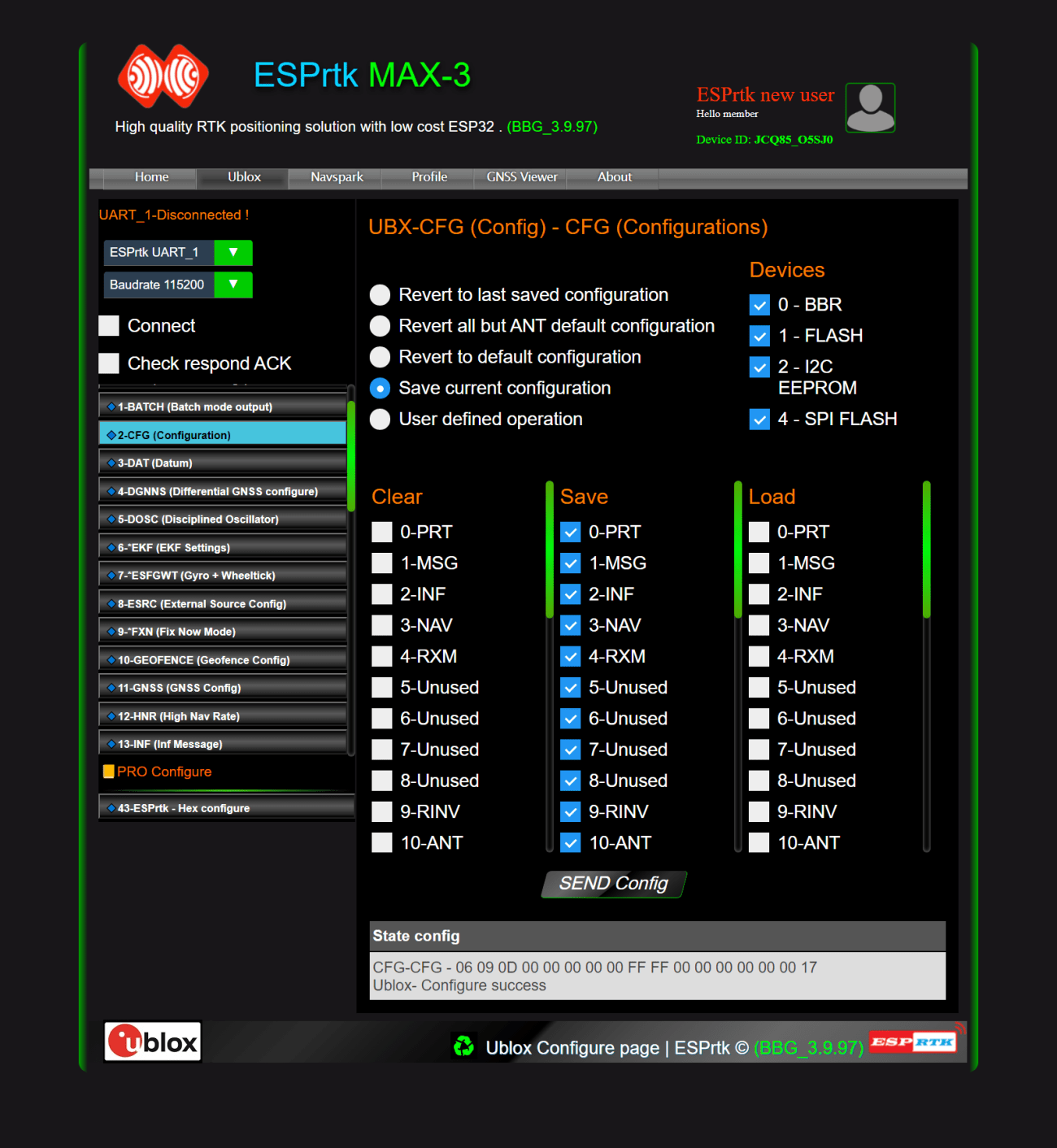

GNSS Configure – F9P Save All configure to Flash

Read detail here : Configure F9P/M8P Ublox as BASE Station


Account for DDNS service

There are many DDNS service providers, either free or purchase.

  • DuckDNS
  • No-ip
  • DynDNS
  • Dynu
  • ENom
  • all-inkl
  • selfhost.de
  • strato
  • freemyip
  • afraid.org
  • OVH.com

In this article, we choose NO-IP. You can get the service free for 30 days (or even free forever as long as you need confirmation of renewal for your account at the end of the month).

First access NO-IP at: https://www.noip.com/

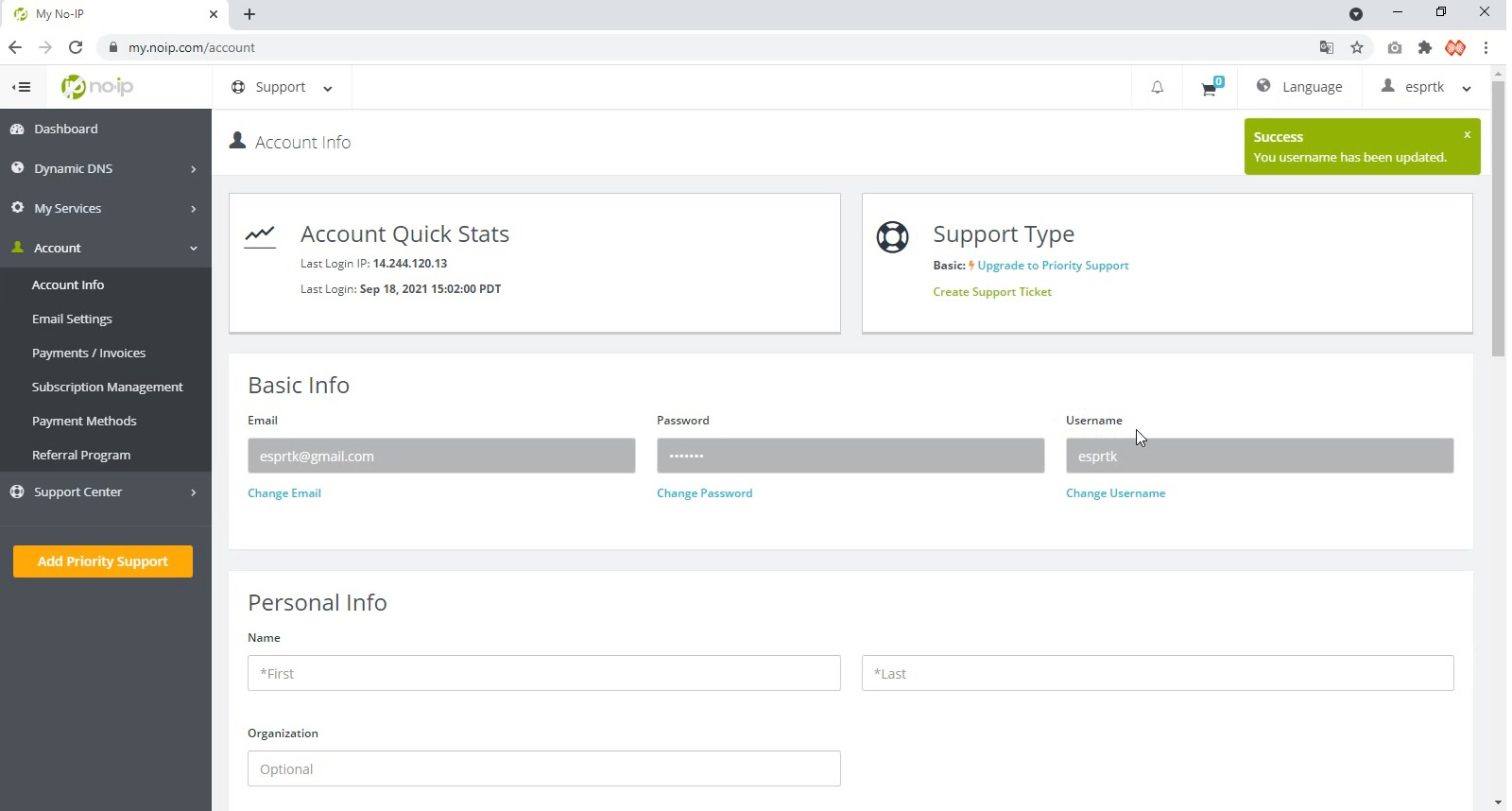

We go to user account management. (This will be the username and password used to configure DDNS in the Router below).

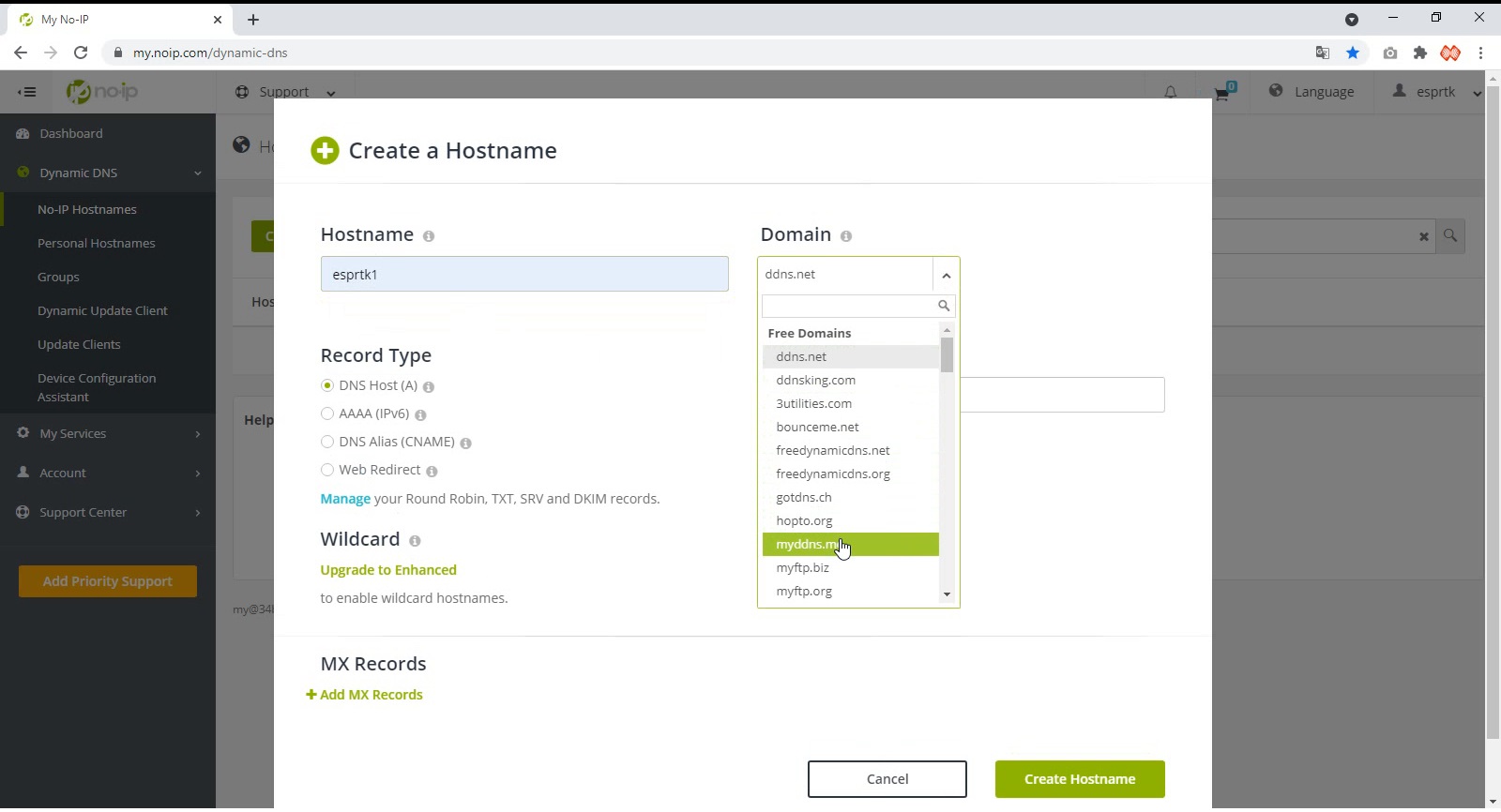

Then add a new domain name .


In this example, my DDNS account is

  • Name: esprtk
  • Password: esprtk_caster
  • Hostname: esprtk1.myddns.me

(Of course you’ll need to create your own one that’s different from the one I’m using!).

Router Configure

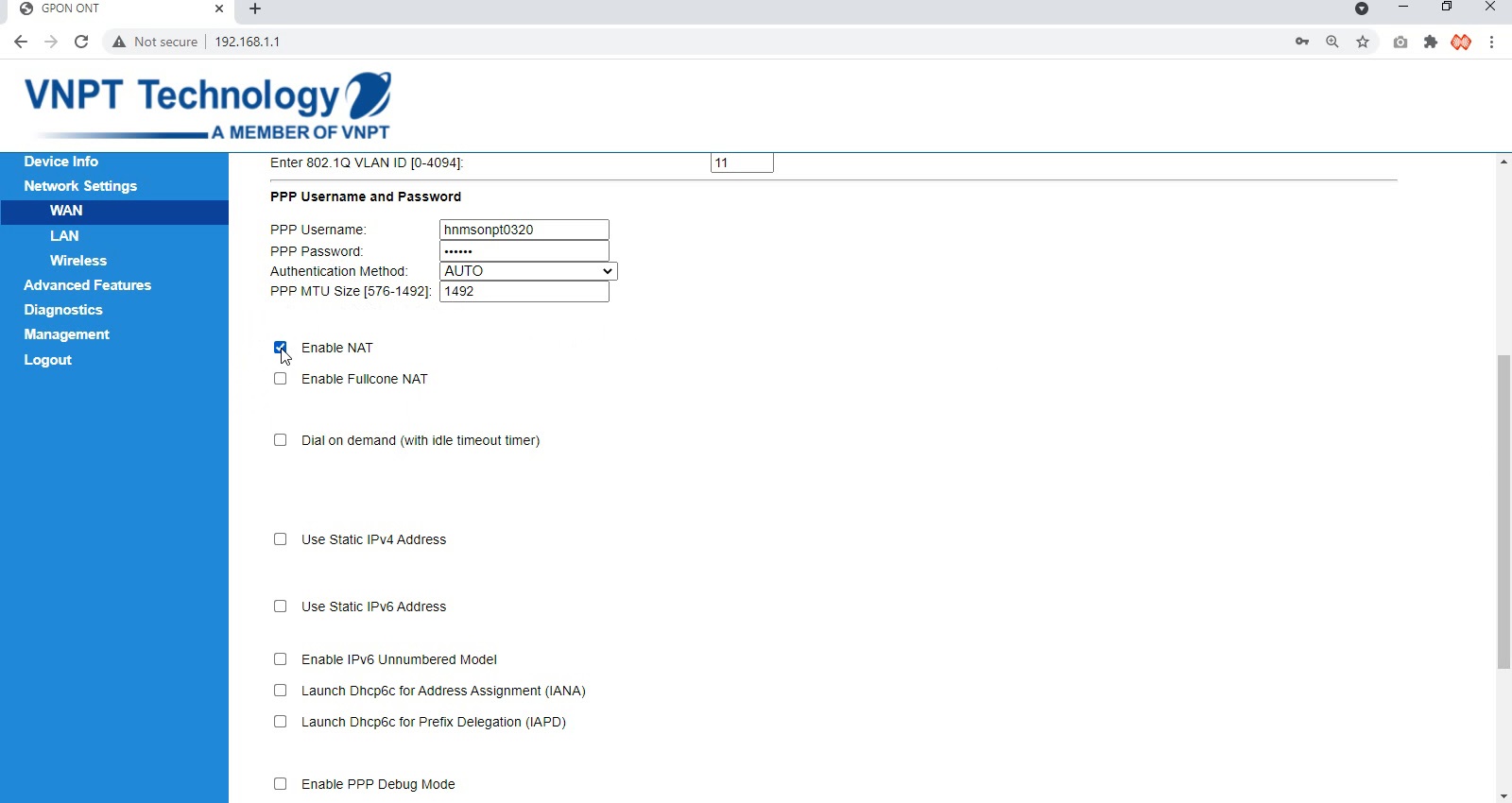

Router Configure – Disble Firewall + Enable NAT

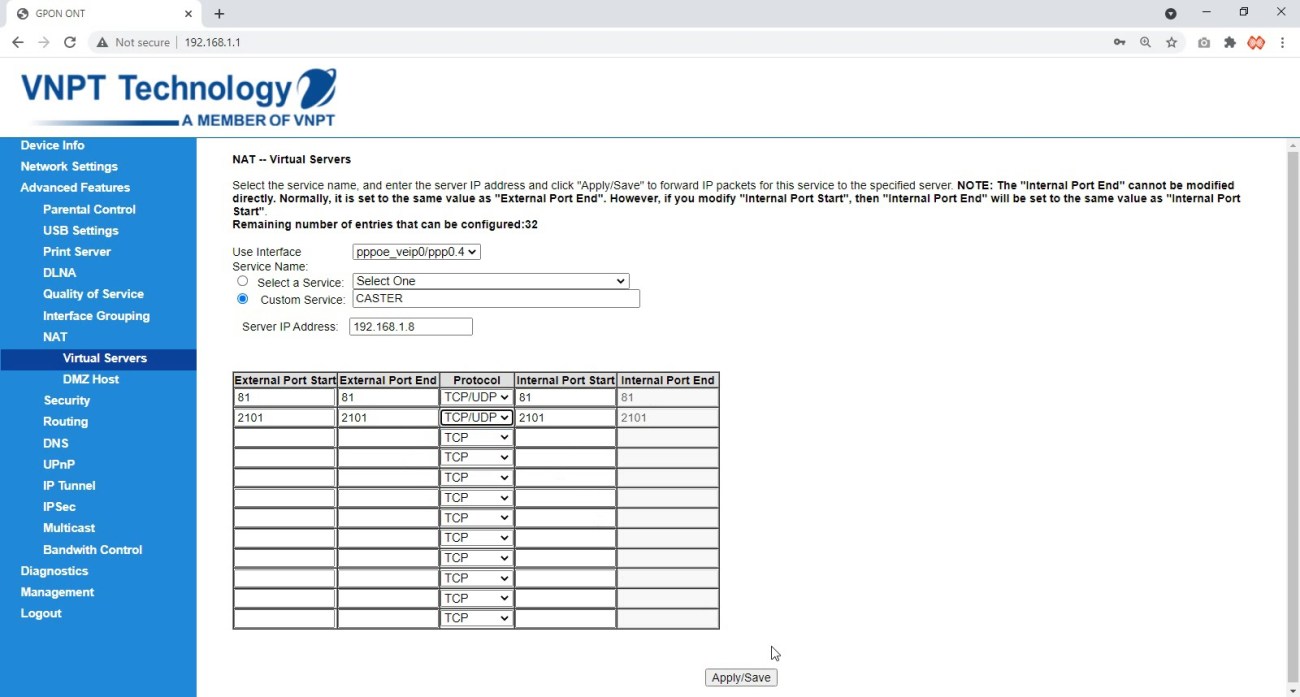

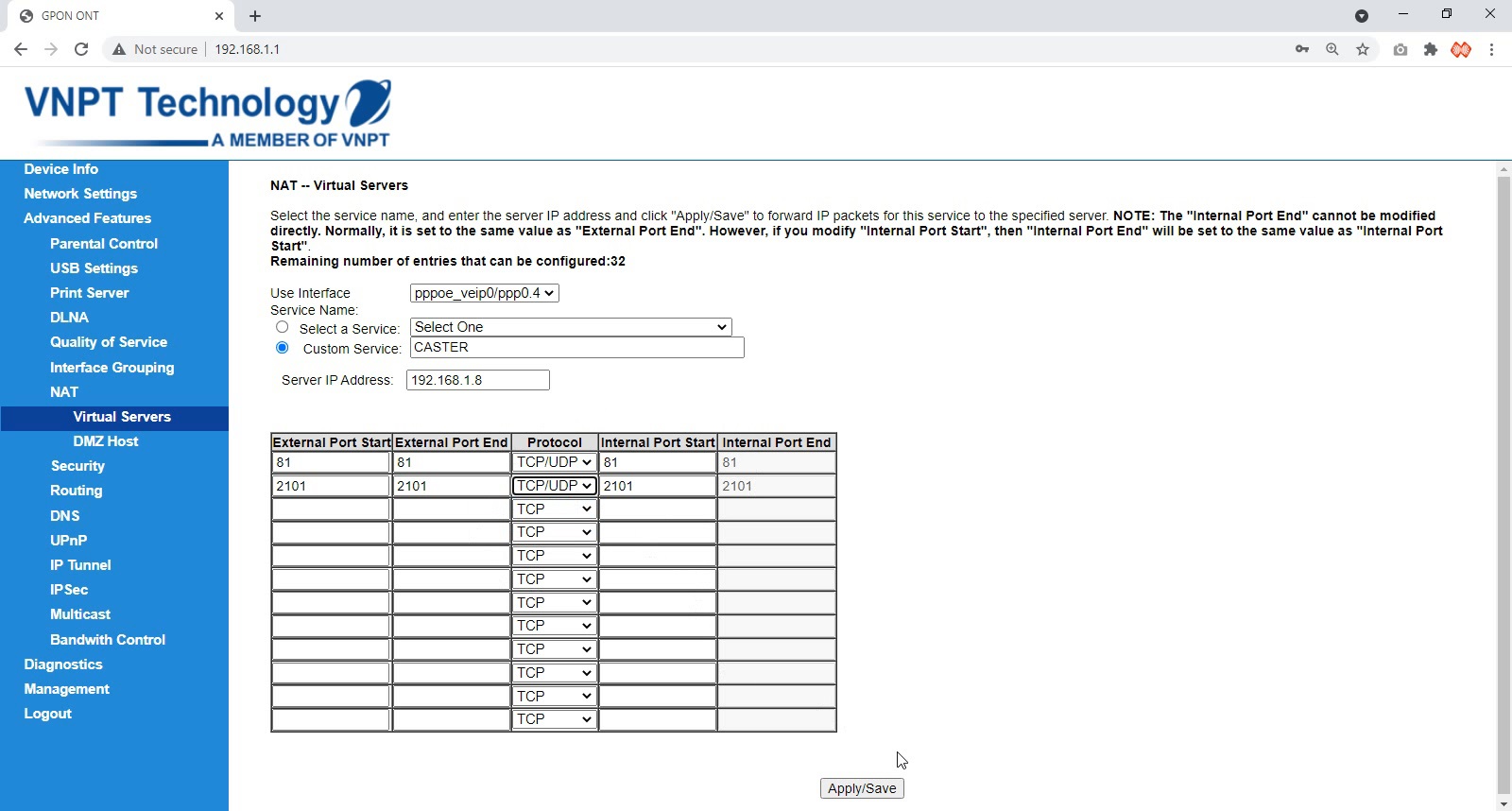

Router Configure – NAT Port

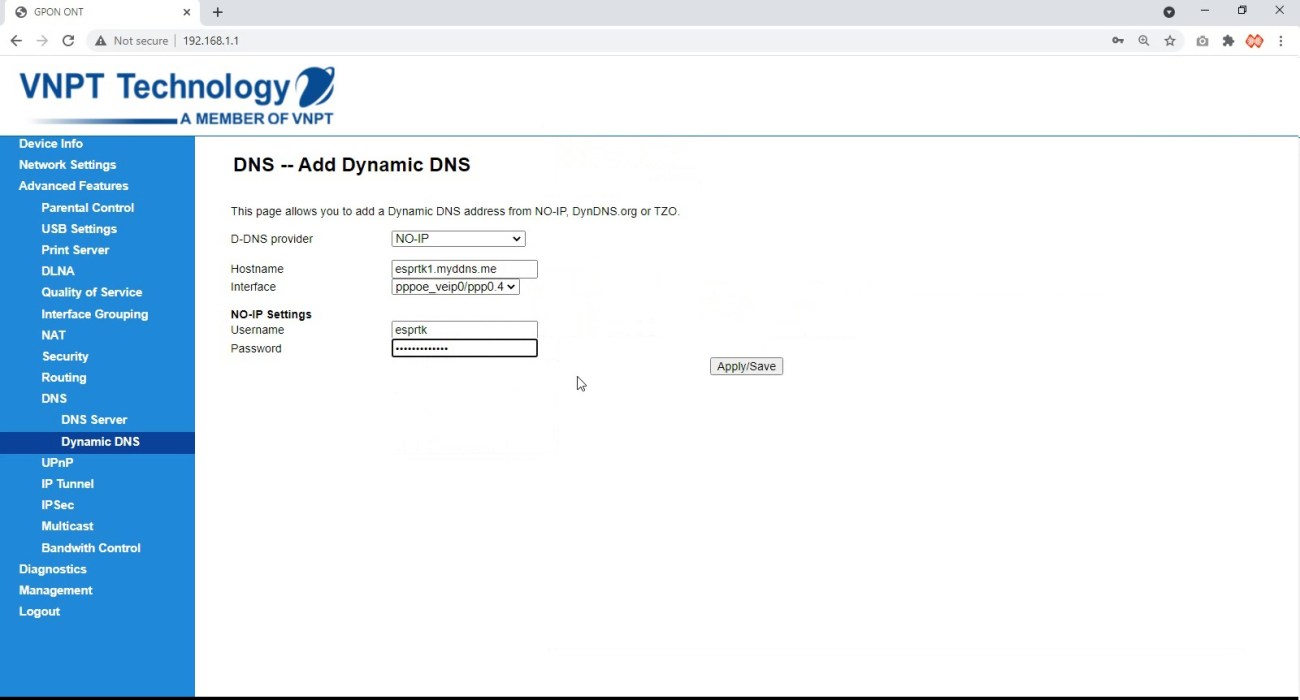

Router Configure – Add DDNS provider

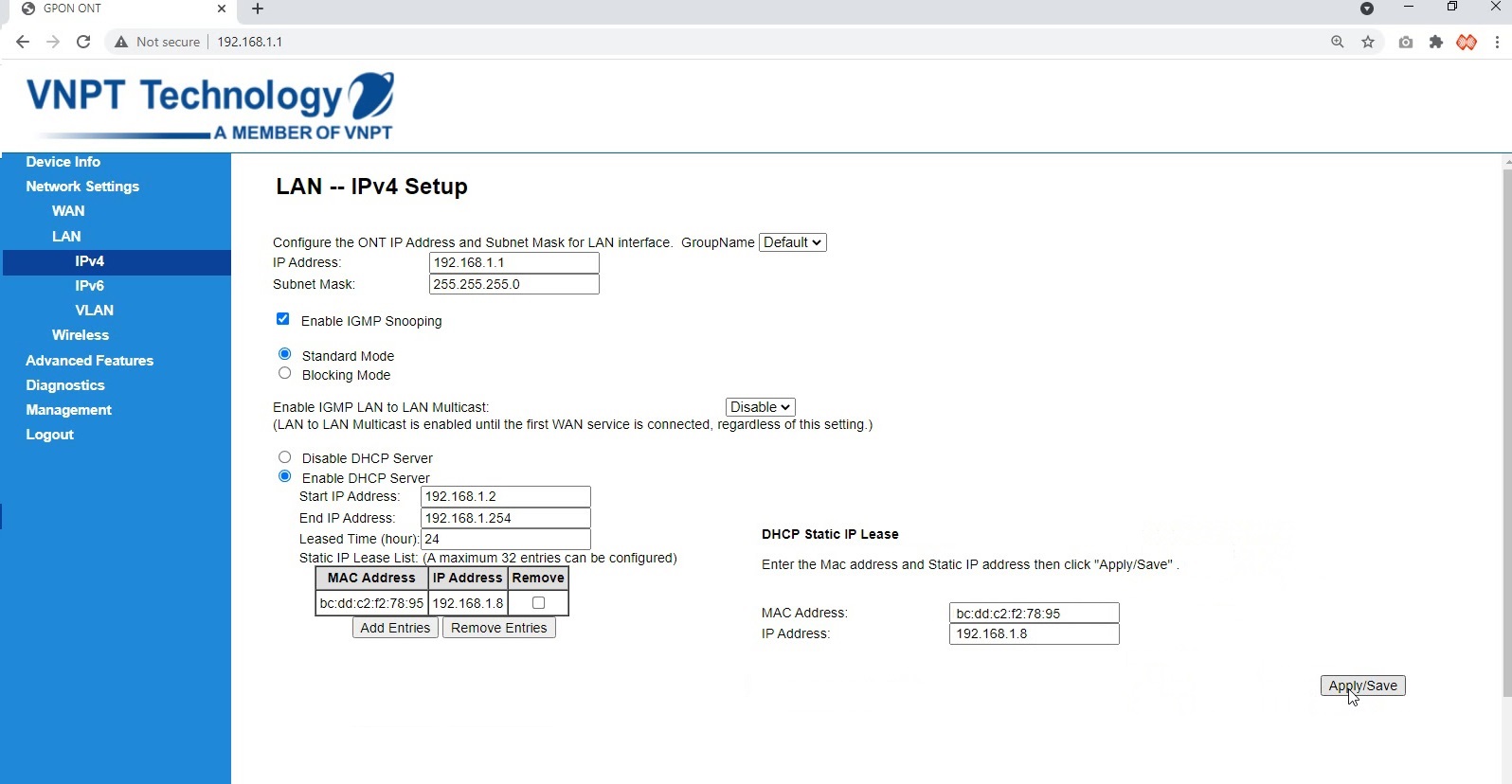

Router Configure – Force DHCP assign a fixed Local IP address by MAC address

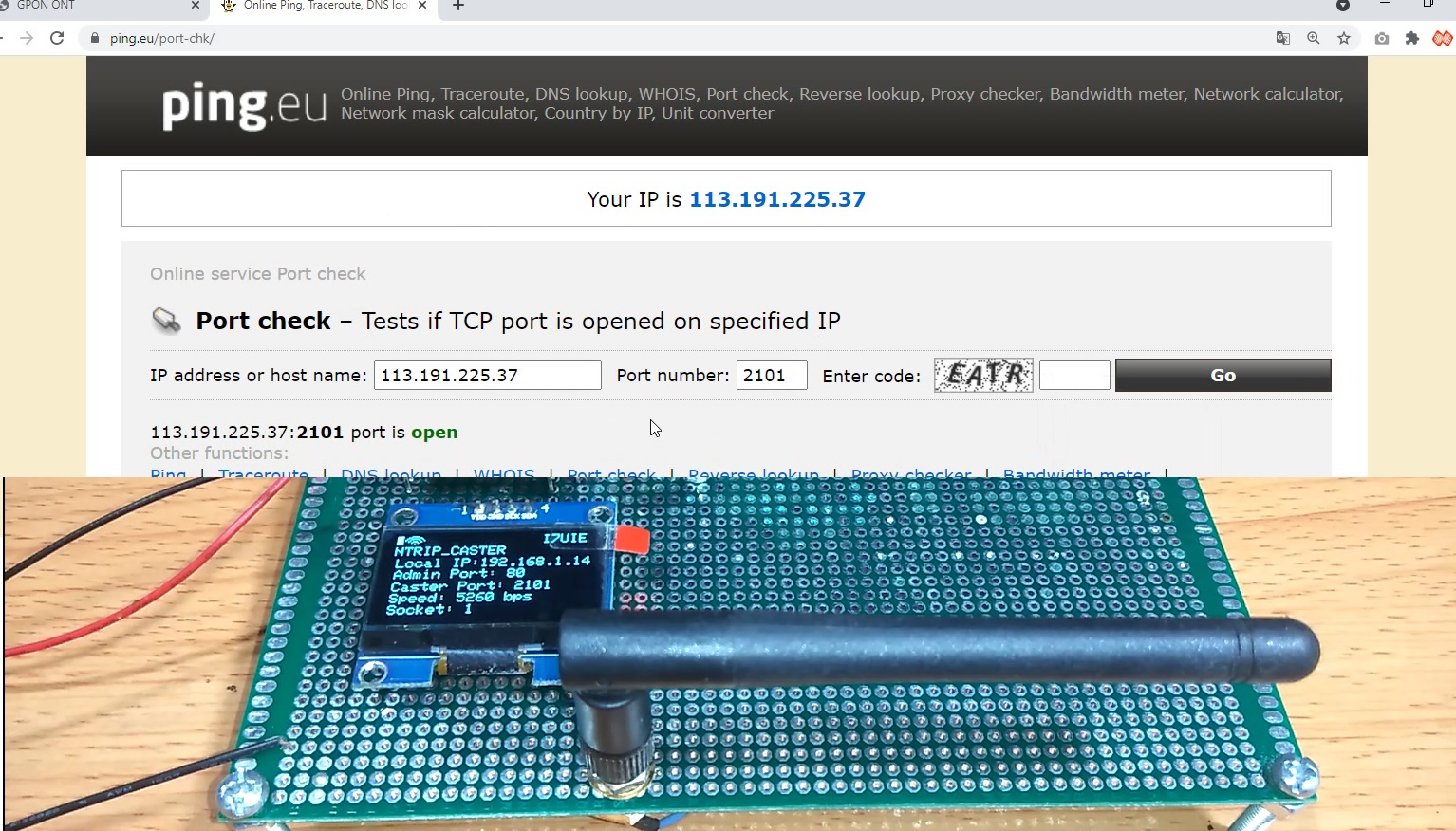

Check Port open

Make sure your ESP_CASTER is running when checking the Port status !

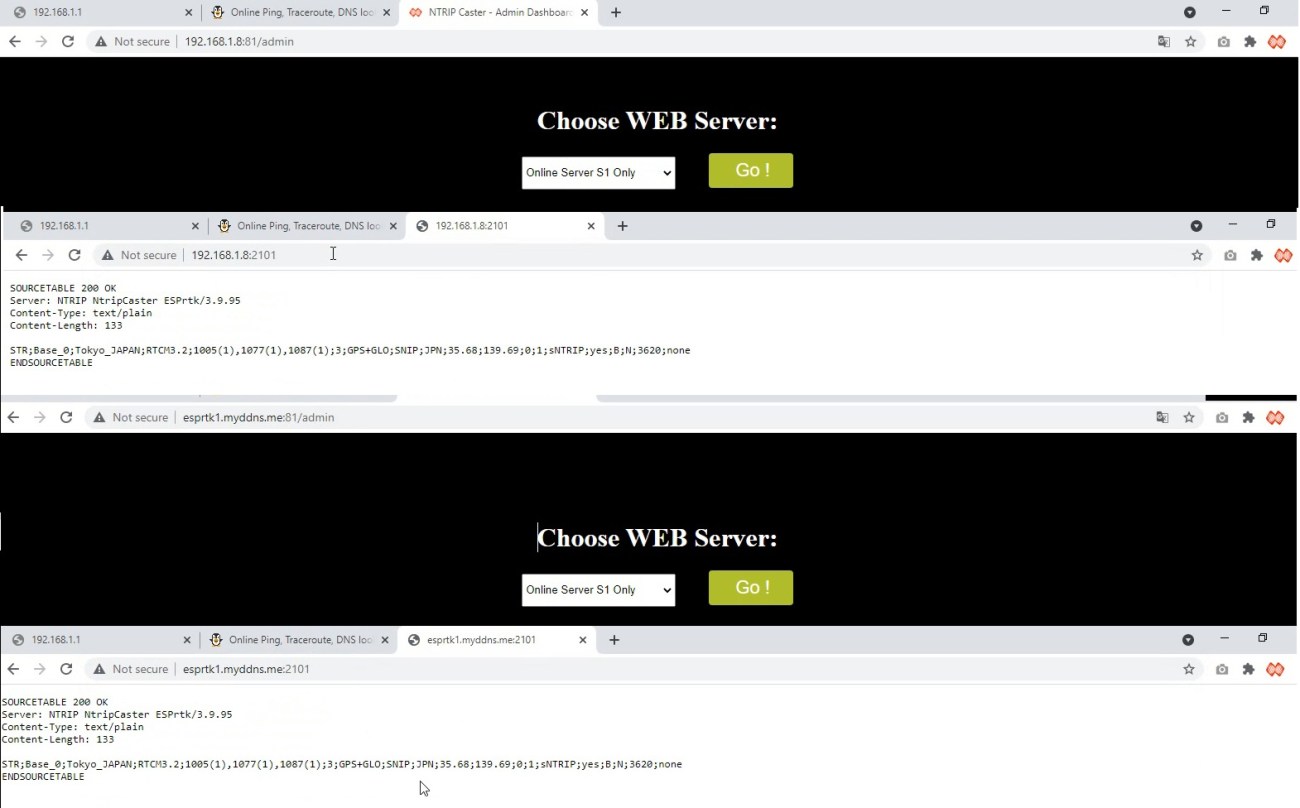

Check CASTER Server address


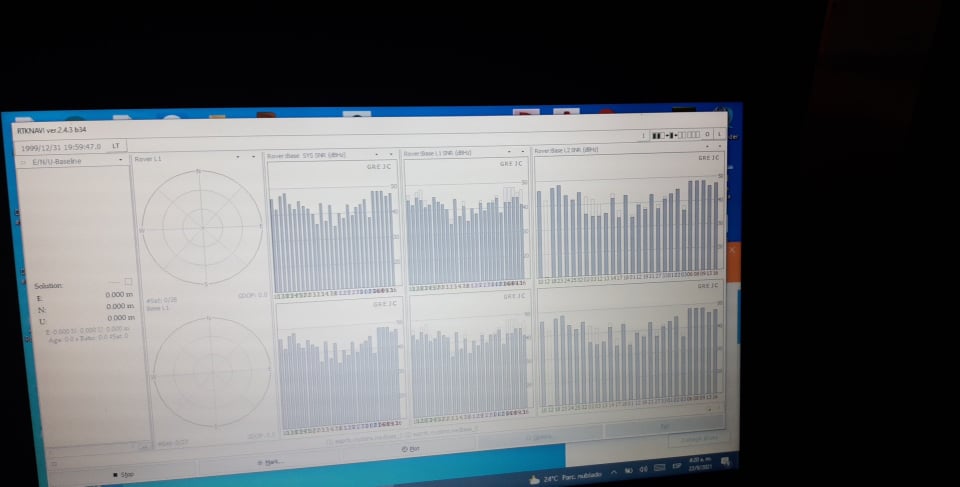

Check with real app and device

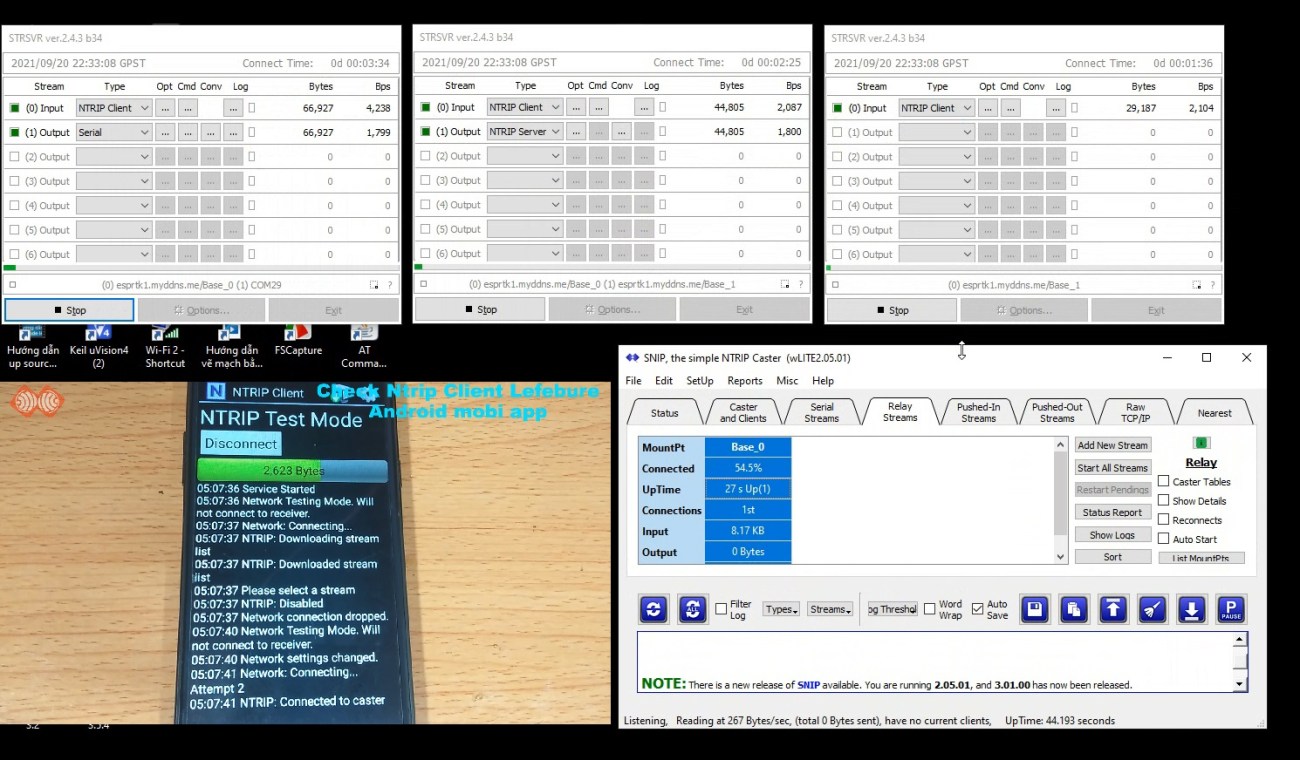

Test the actual operation with multi-connection and multi-device support on the same time.

  • NTRIP Client Lefebure :1
  • NTRIP Client RTKLIB : 3
  • NTRIP Client SNIP : 1
  • NTRIP Server RTKLIB : 1

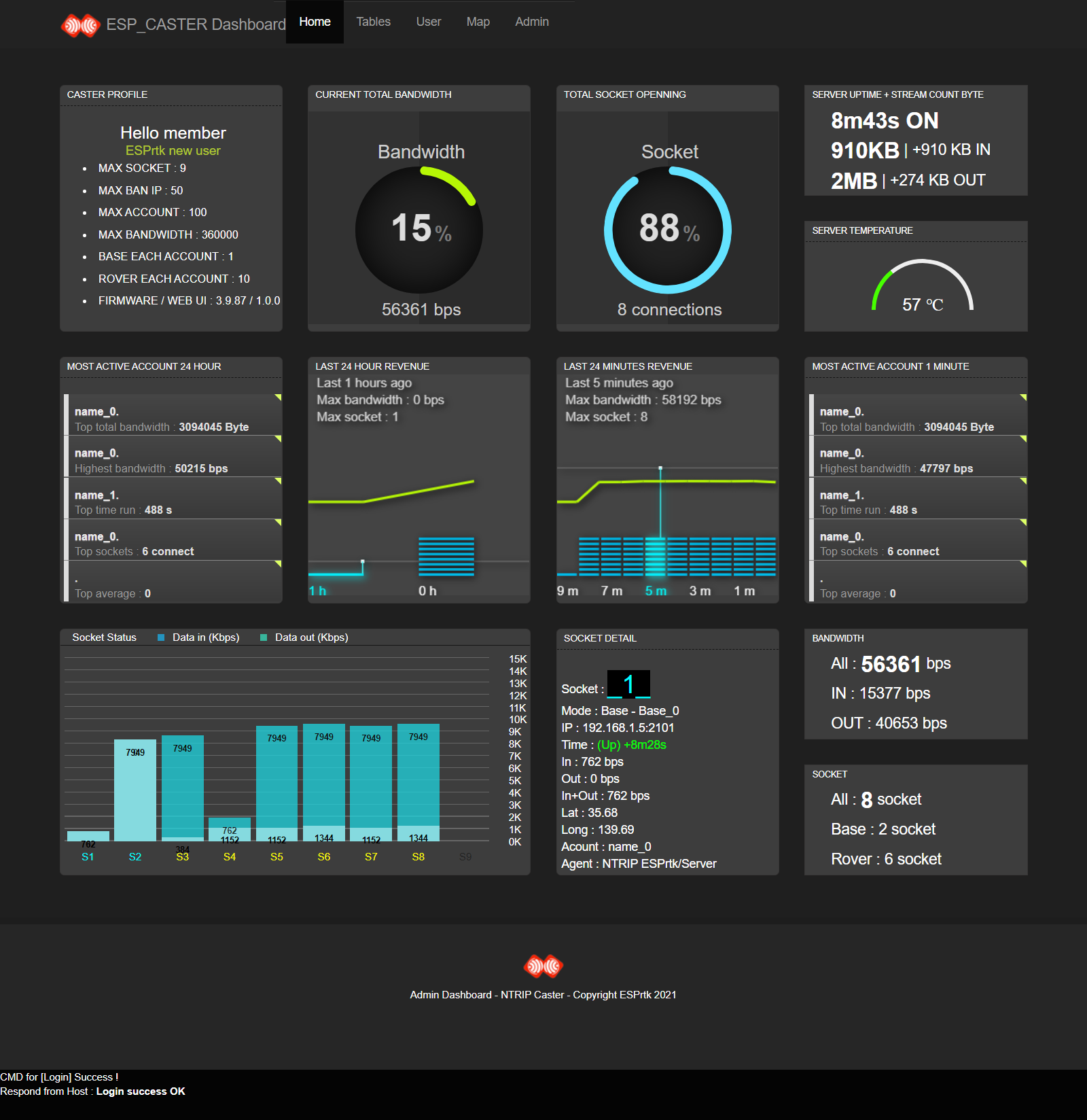

Check Admin Dashboard page



Build multi CASTER Server on multi port

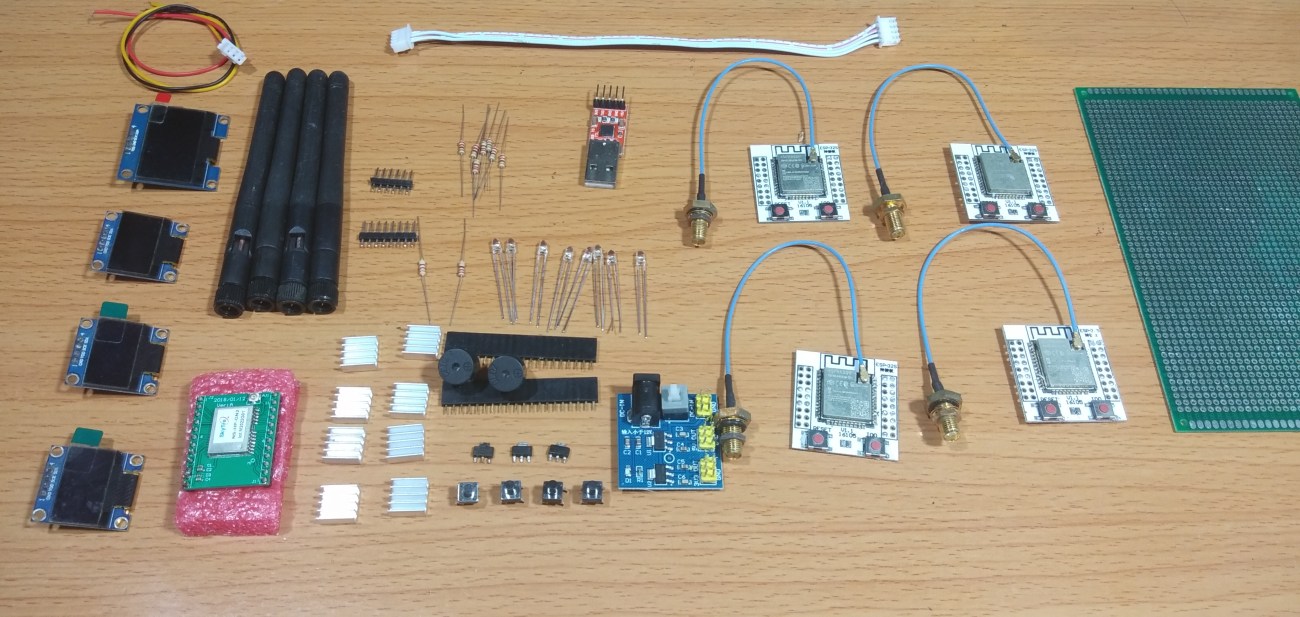

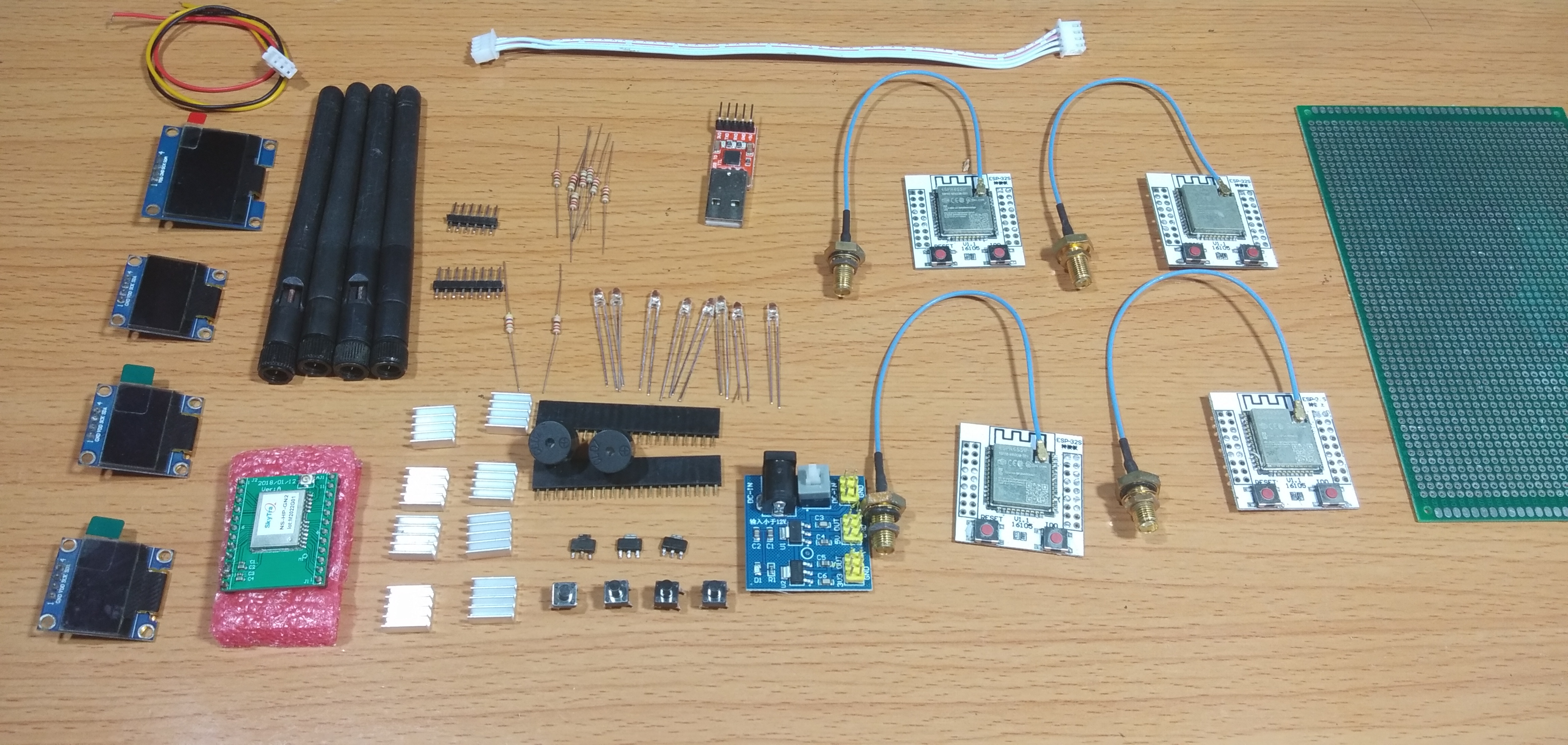

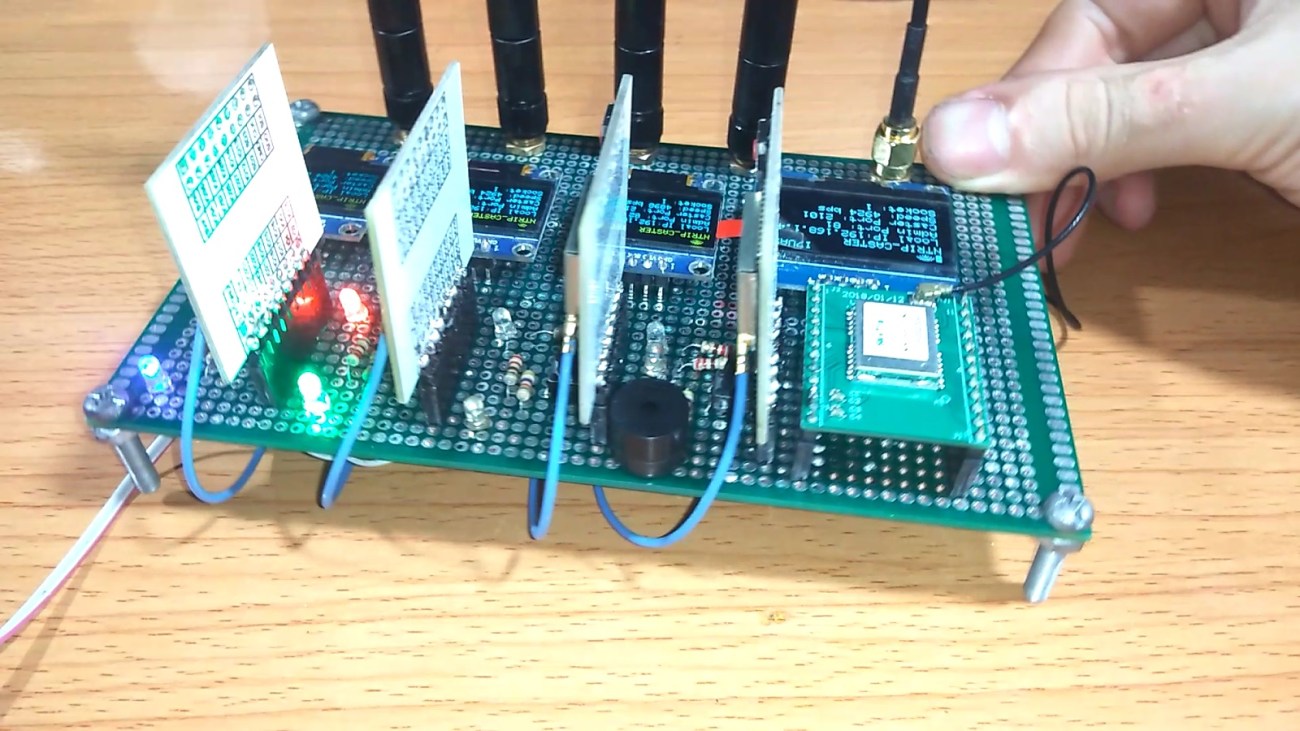

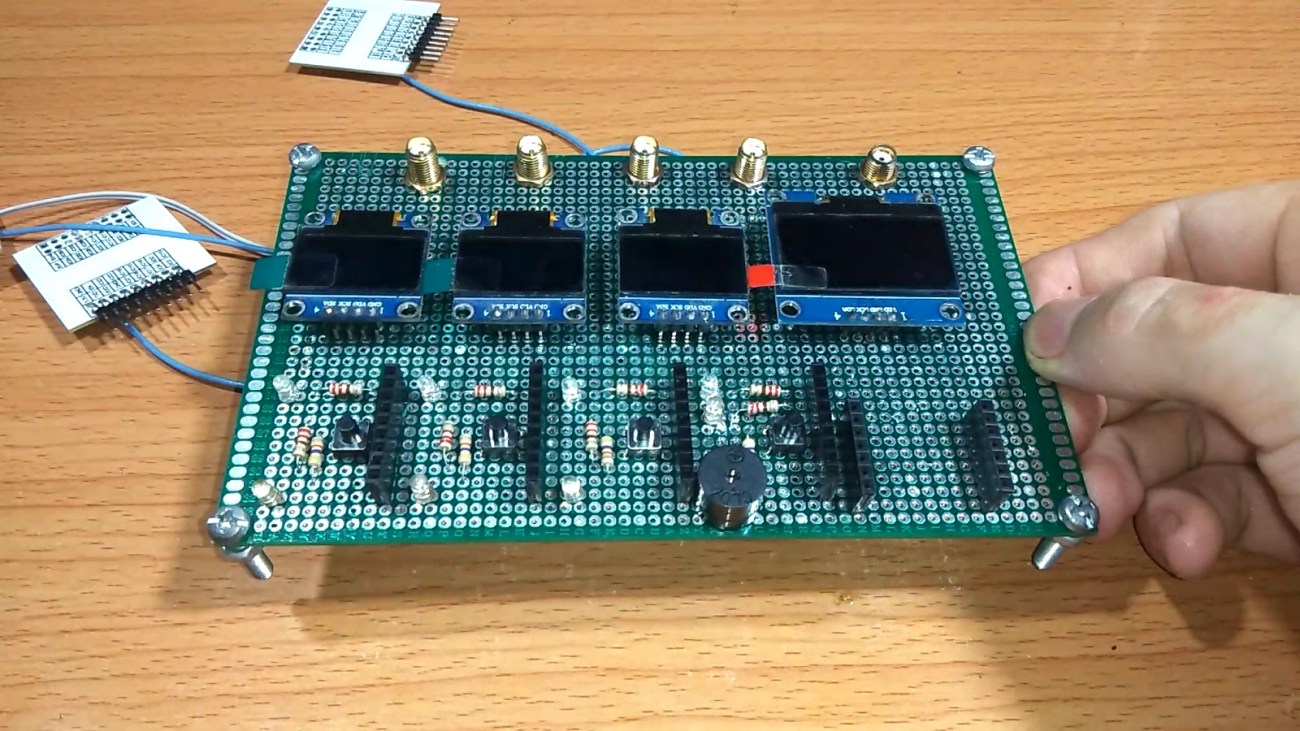

Multi CASTER – Hardware prepare

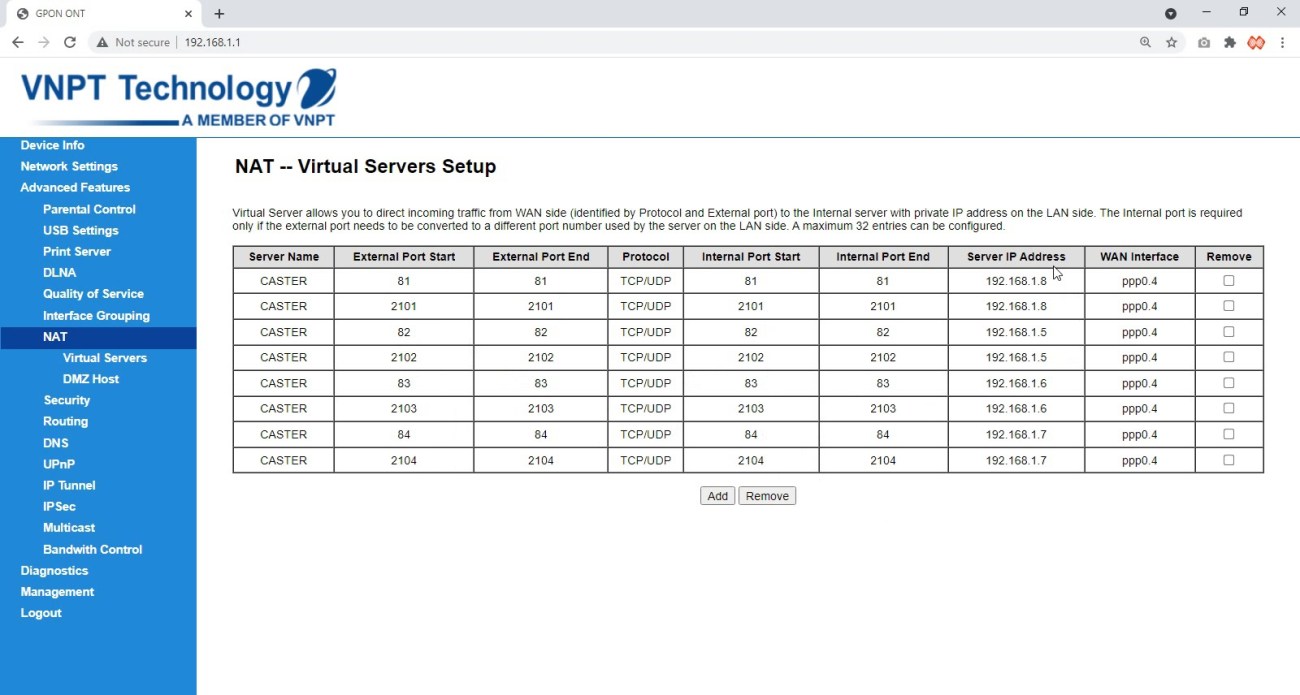

Multi CASTER – NAT Multi Port

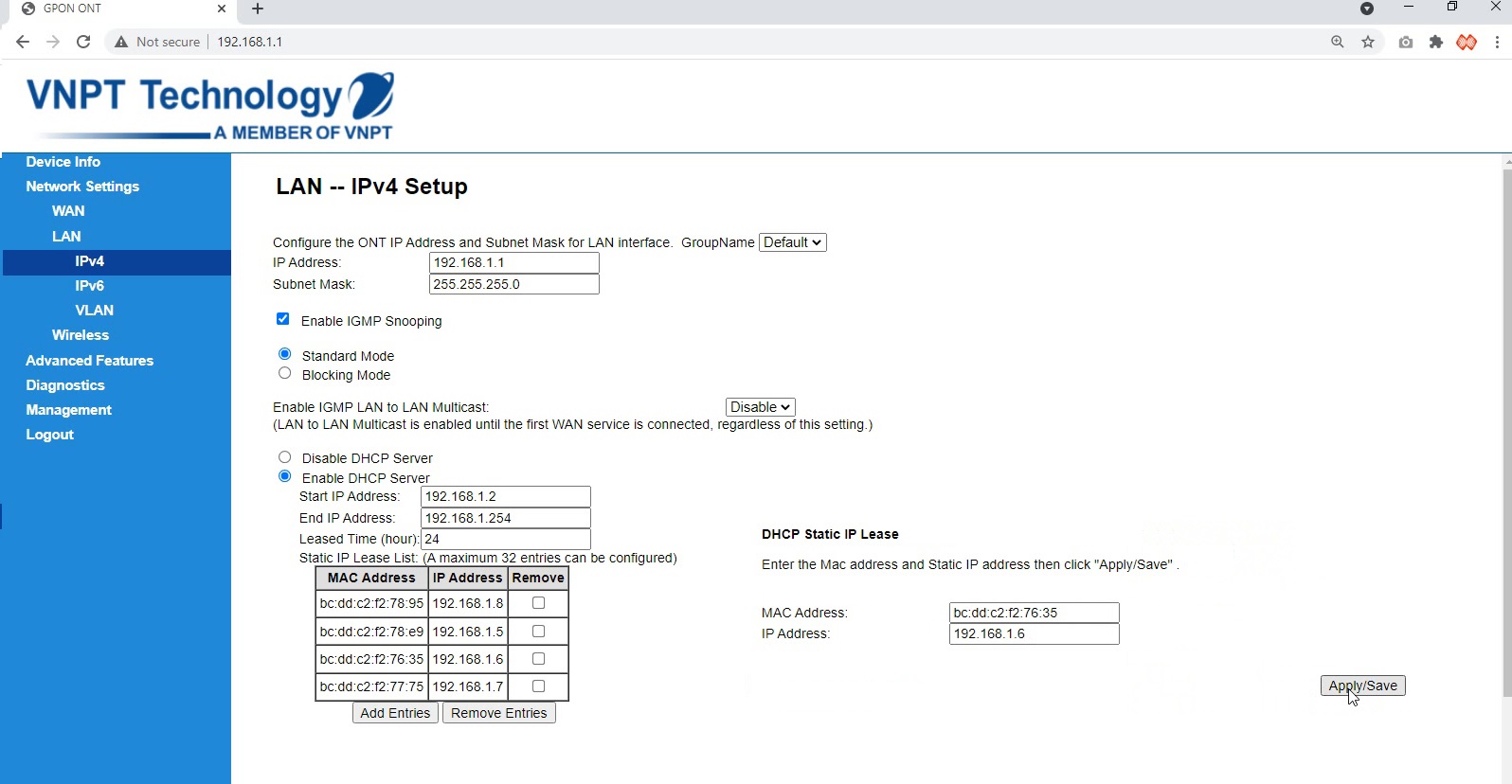

Multi CASTER – Force DHCP assign a fixed Local IP address by MAC address


Multi CASTER – Final Full Test


Admin dashboard login:

  • Name login : admin
  • Password: abc123ABC

NTRIP Client/Server login:

  • Name login: name_0 (or name_1, name_2,…)
  • Password: pass_0 ( or pass_1, pass_2,..)

Learn all the powerful features here:

We also created a video tutorial here: https://youtu.be/jYI4_MdHs5E

What we want to emphasize is that this is a server run by only low cost ESP32 module, no need for Raspberry PI computer or a complicated server system !
Hope this project helps all of you.

The Router in our guide may be different from yours. If you have difficulty in setting up DDNS, NAT port, firewall,… please contact us via email : contact@esprtk.com

We will try to help you set up your system successfully for free.

Best regards – ESPrtk Dev Team.

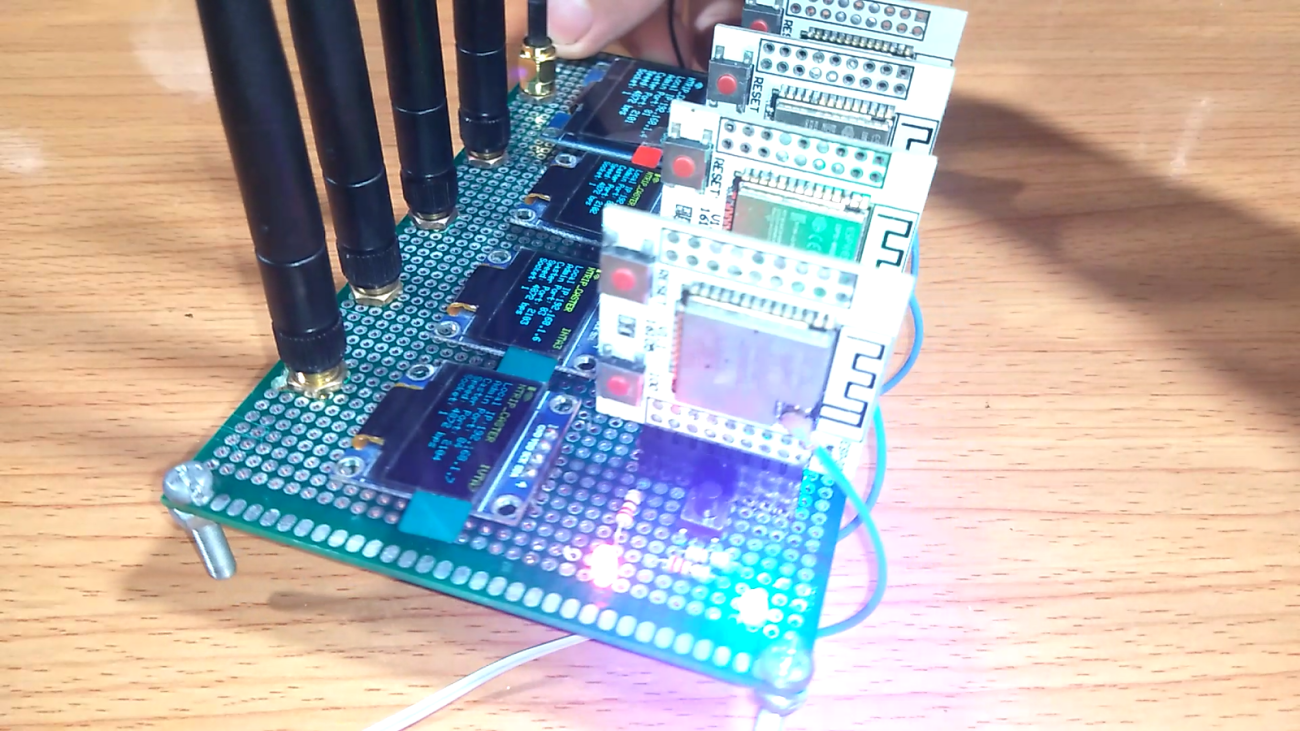

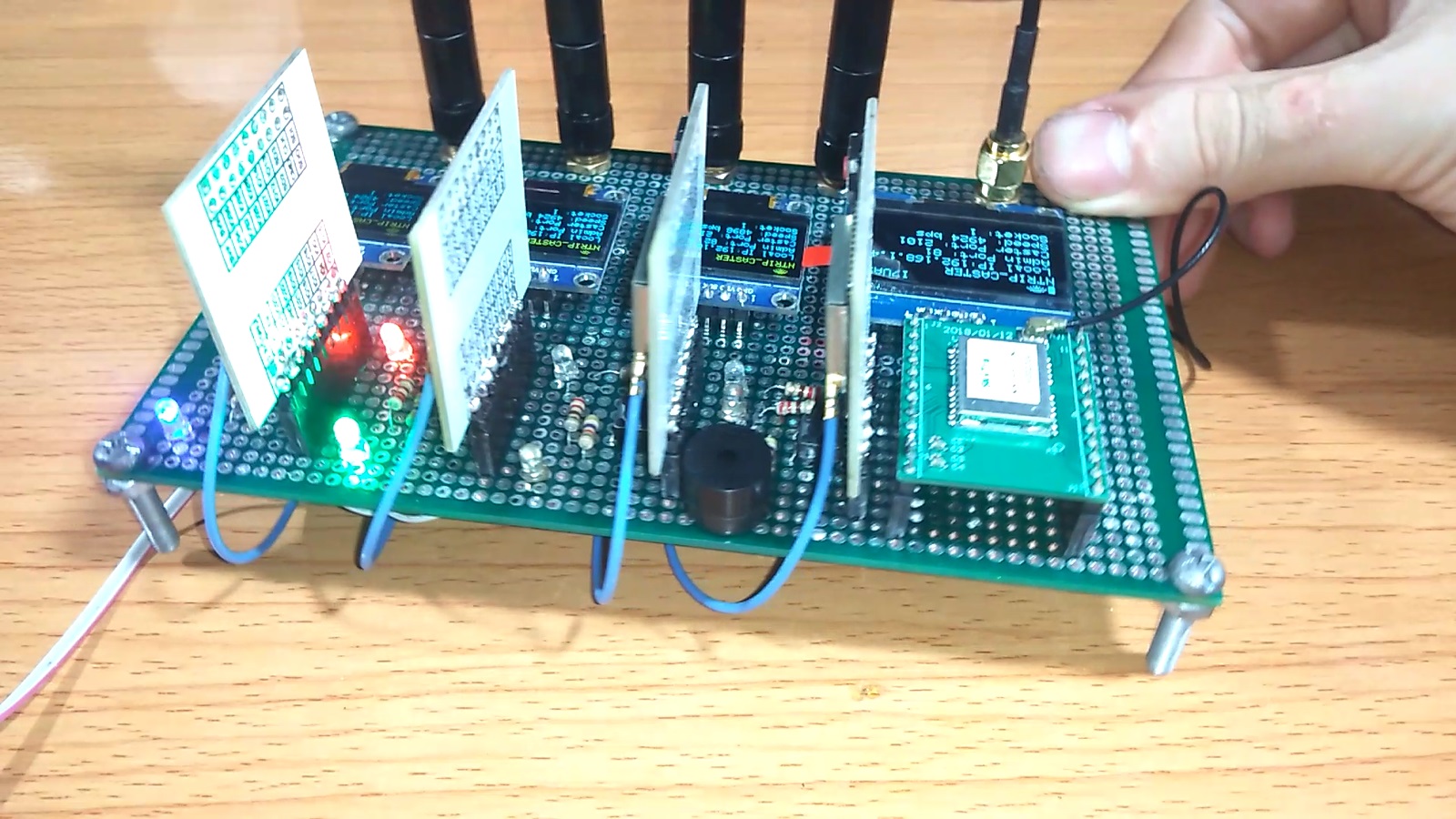

Multi CASTER – 1 year running

We will keep this system of 4 CASTER servers running continuous for 1 year from September 20, 2021 to September 20, 2022 (maybe longer if possible).


Some note :
Because we are making the login account (of the Admin Dashboard page) available to everyone, that means anyone can log in, view and change the configuration content on it.
So, if more than 2 people are logged into the Admin Dashboard page at the same time, the previous login will be automatically logged out, all you need to do is just click the login button again!
Hope you just only login, watch , go around and don’t try to attack this server.
It’s just a lovely ESP32 chip and only supports up to 10 connections at the same time! ( 40 connections for multi 4 server).
We need to keep it working as a demo so everyone can evaluate it’s feature.
Thank you so much for your interested .

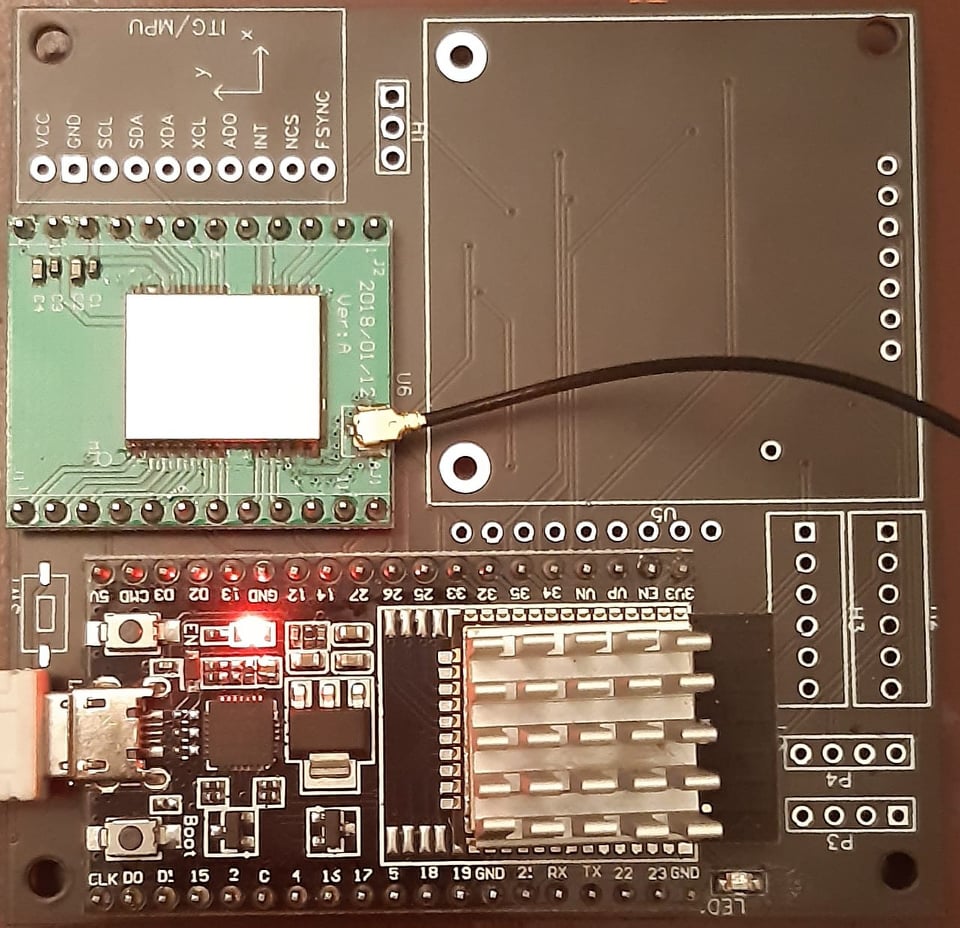

Multi CASTER – Heatsink

Hello.

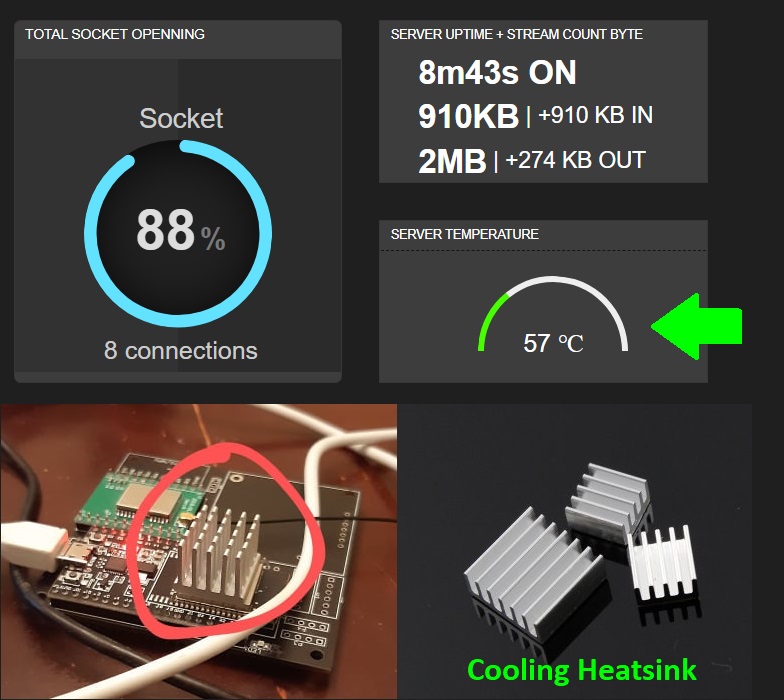

On Admin Dashboard page. You can see the temperatures of ESP32 chip ( internal sensor ). For long time running, using an heatsink will be the solution



For applications that run for long periods of time.
Keeping the ESP32 cool within the standard temperature range will help maintain stability and increase the life of the device. ( uptime ) .
Using a cooling fan, aluminum heatsink combined with the ESP32’s WIFI/Bluetooth power reduction will help lower the temperature.

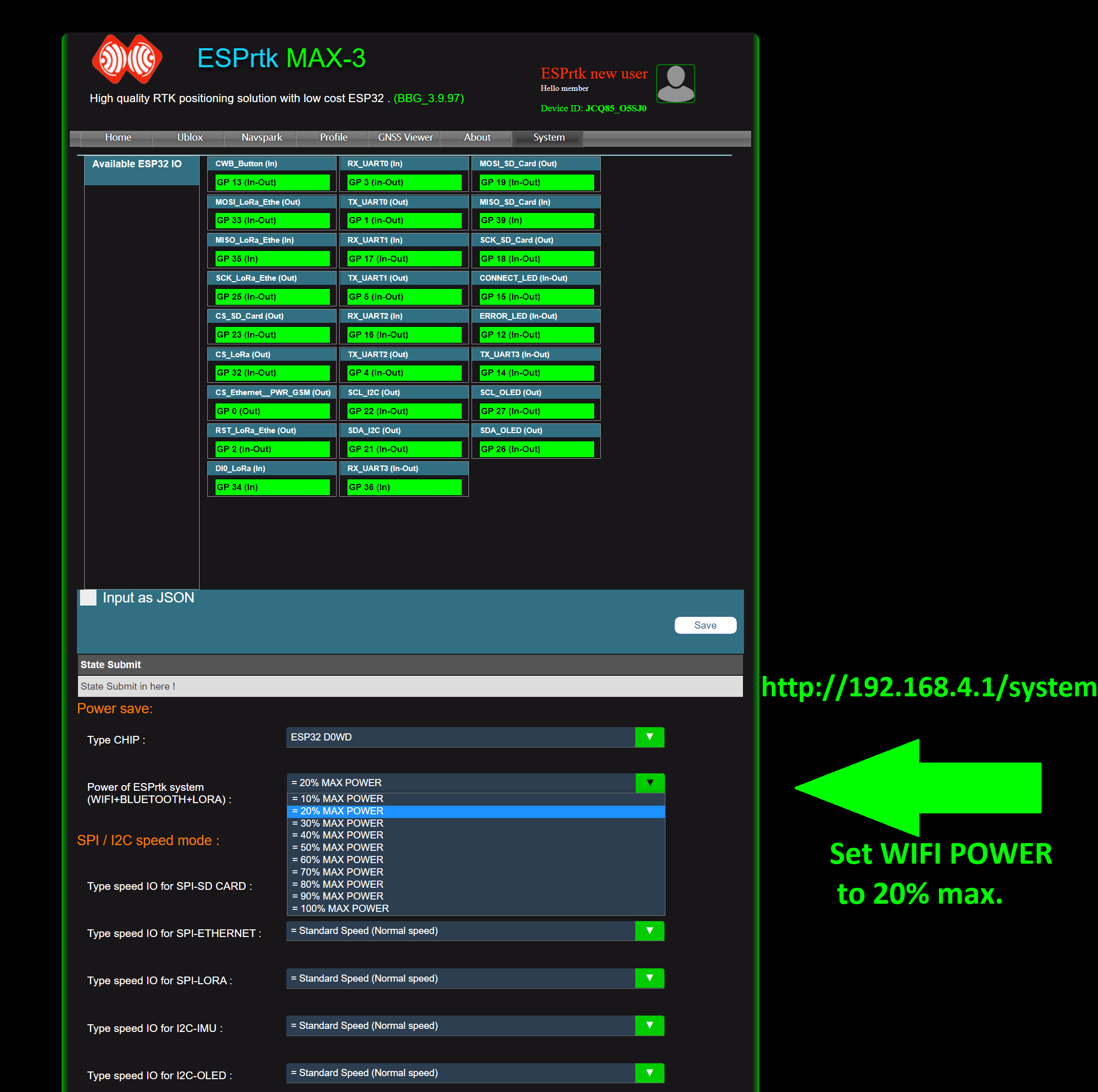

In the WEB configuration page, go to http://192.168.4.1/system
Here you can manage TX WIFI/Bluetooth/LoRa transmit power (and output PIN, error message… Read more here )
Set the TX WIFI to 10% to 20% and place the ESP32’s WIFI antenna as close to the Router as possible.

Solution automatic fixed local IP address

Hi.
Some users have reported to us via email that their Router does not support setting a fixed local IP address.
Therefore, we have released a new version (3.9.97) that supports automatic fixed local IP address setting.
This feature supports registration of 250 different addresses, in practice you should choose a large value (starting from 250,249,248,247,… → 100 ) to avoid conflicts during registration.


Step 1 : Hardware connection – ETHERNET + Full standards.

For RTK Basestation applications with up to several months or years of continuous uptime, we always recommend users to use the W5500 Ethernet module for their systems to ensure a stable 24-hour connection !.

In addition, it is possible to add 1 buzzer on the ERROR LED pin (3.3V Active Buzzer) and 1 small OLED module to be able to see the operating status, (connection status, error, flow rate, etc.) of the whole. system .

To connect ESPrtk with RTK receiver, Ethernet, OLED …,  Click here for more detail.

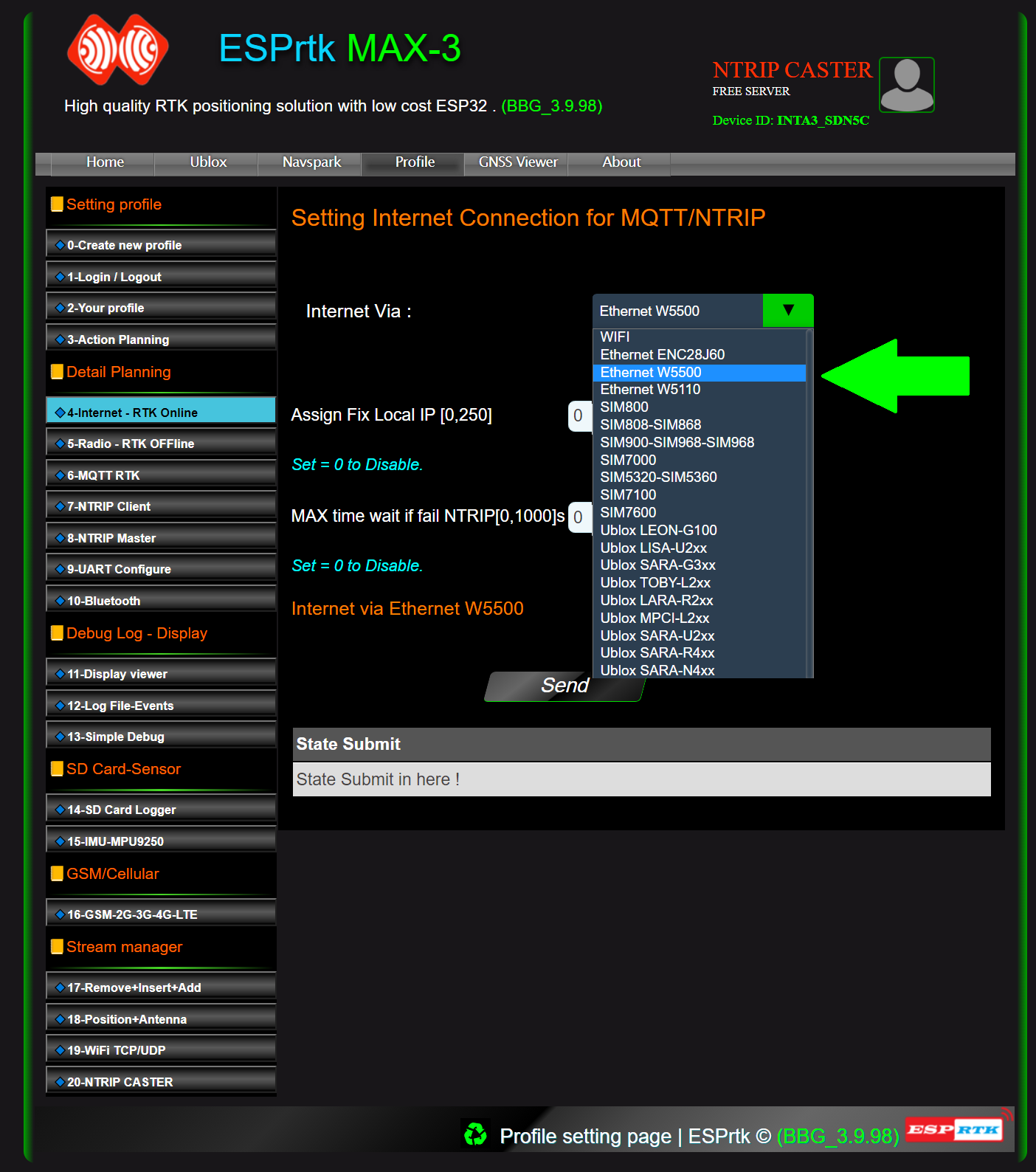

ETHERNET select.

Project – AGOPENGPS

We also created an topic at AGOPENGPS here. let’s join and discuss with us !

https://discourse.agopengps.com/t/diy-ntrip-caster-server-with-esp32-and-free-ddns-provider-f9p-px1122r/7145
